  2. PSM42HS2A40-2P

PSM42HS2A40-2P

https://pbhmaxima.odoo.com/web/image/product.template/16394/image_1920?unique=da814d3

[Maxima Stepper Motor - 2Phase]

₹ 1,250.00 1250.0 INR ₹ 1,250.00 Per Nos.

(Inc GST)
₹ 1,250.00 (+ GST 18% extra)

₹ 1,250.00

Not Available For Sale

This combination does not exist.

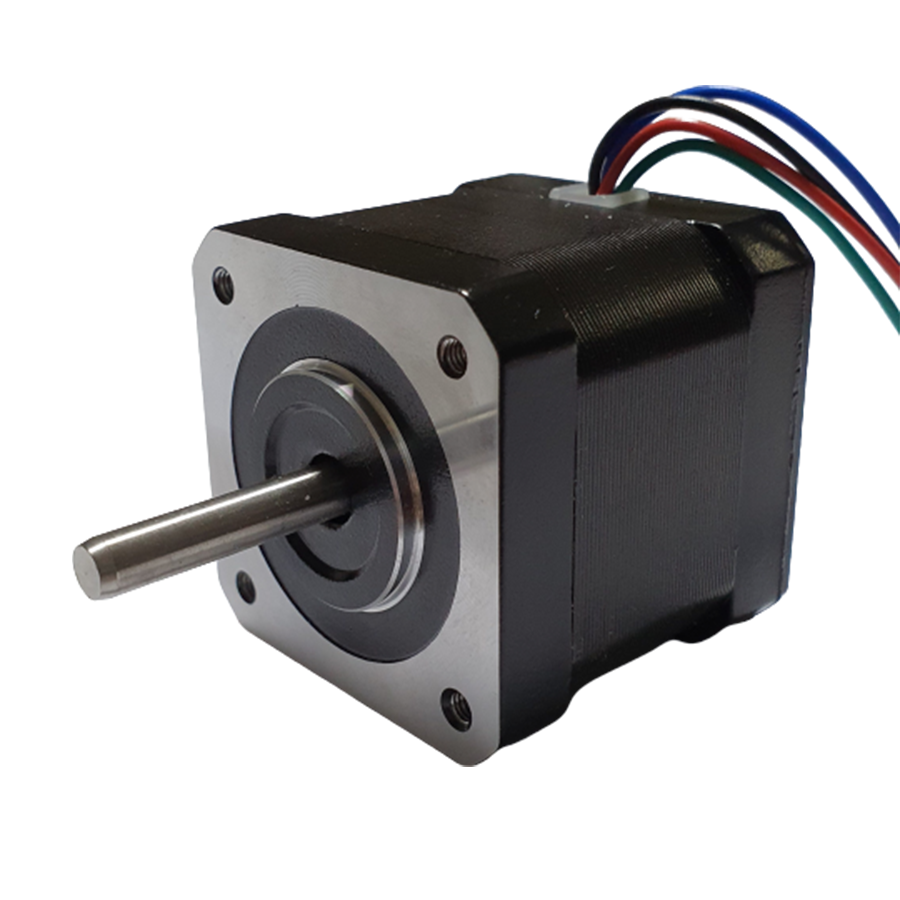

Maxima Stepper Motor 2 Phase
Holding Torque : 3.2 Kg-cm
Nema 17
Step Angle : 1.8 degree
Shaft OD : 5 mm
Number of Wires : 4 / 8
Contact Us

Description

Nema 17 Size - 2 Phase Stepper Motor

  • Step Angle : 1.8 °
  • Insulation Class : B
  • 4 Lead (Wire)
  • Low Noise
  • Low Vibration
  • Smooth movement

Specifications :


Model                                              PSM 42-40 2P

Holding Torque (Kgcm)                    3.2

Current/ Phase (A)                            0.8

Resistance (Ohns)                            10

Inductance (mh)                               17

Dentent Torque (g/cm)                     150

Rotar Inertia (g/cm2)                        57

Weight (kg)                                       0.24

Motor Length (mm)                          40

Shaft Diameter                                 5

No. of Motor Leads                          4
