MCS 40 - Length 1500mm

    ₹ 3,870.00 ₹ 3,870.00 3870.0 INR

    ₹ 3,870.00

    This combination does not exist.

    Add to Cart Buy Now
    Maxima Shaft Dia : 40 mm
    * Case Hardened & Ground Chrome Plated
    * g6 Tolerance : -9 μm to -25 μm
    * Material : 45 High Quality Carbon Steel S45C
    * Hardness : HRC 55-60
    * Suitable for Linear Bearings, Pneumatic, Hydraulic applications

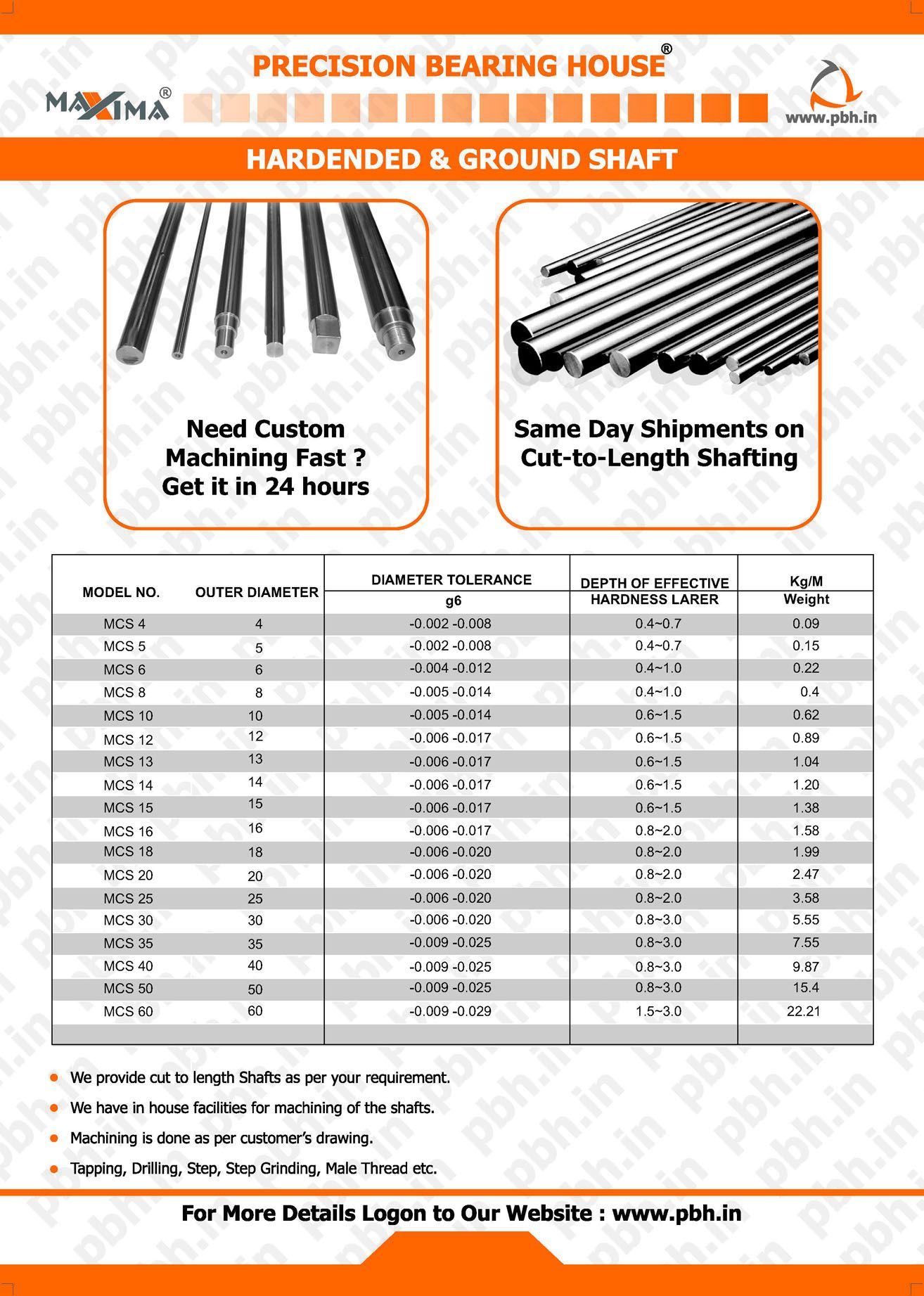

    [Maxima Hardened & Ground Shaft]

    Description

    * Maxima Shaft Dia : 40 mm

    * Case Hardened & Ground

    * g6 Tolerance

    * Suitable for Linear Bearings, Pneumatic, Hydraulic applications

    • Applications : Machine Centers ,Machine Tools, Precision machining machines,Heavy cutting machines, Punching machines,Marble cutting machines,Automatic equipments,Grinding machines,High speed transfer equipments, Injection Moulding machines, Measuring equipments

    • Suitable Shaft Supports : SK 40 or SHF 40

    • Suitable Linear Bearings : LM 40 UU, LM 40 LUU, LMF 40 UU, LMF 40 LUU, LMK 40 UU, LMK 40 LUU, LMH 40 UU, LMH 40 LUU, SC 40 UU, SC 40 LUU
