Customised End Machining

• Tapping

• Threading

• Drilling

• Step

• Keyway

• Snap ring groove


• Chamfering

 We have in house facilities for machining of the shafts.

for quote please email your drawing to sm@pbh.in

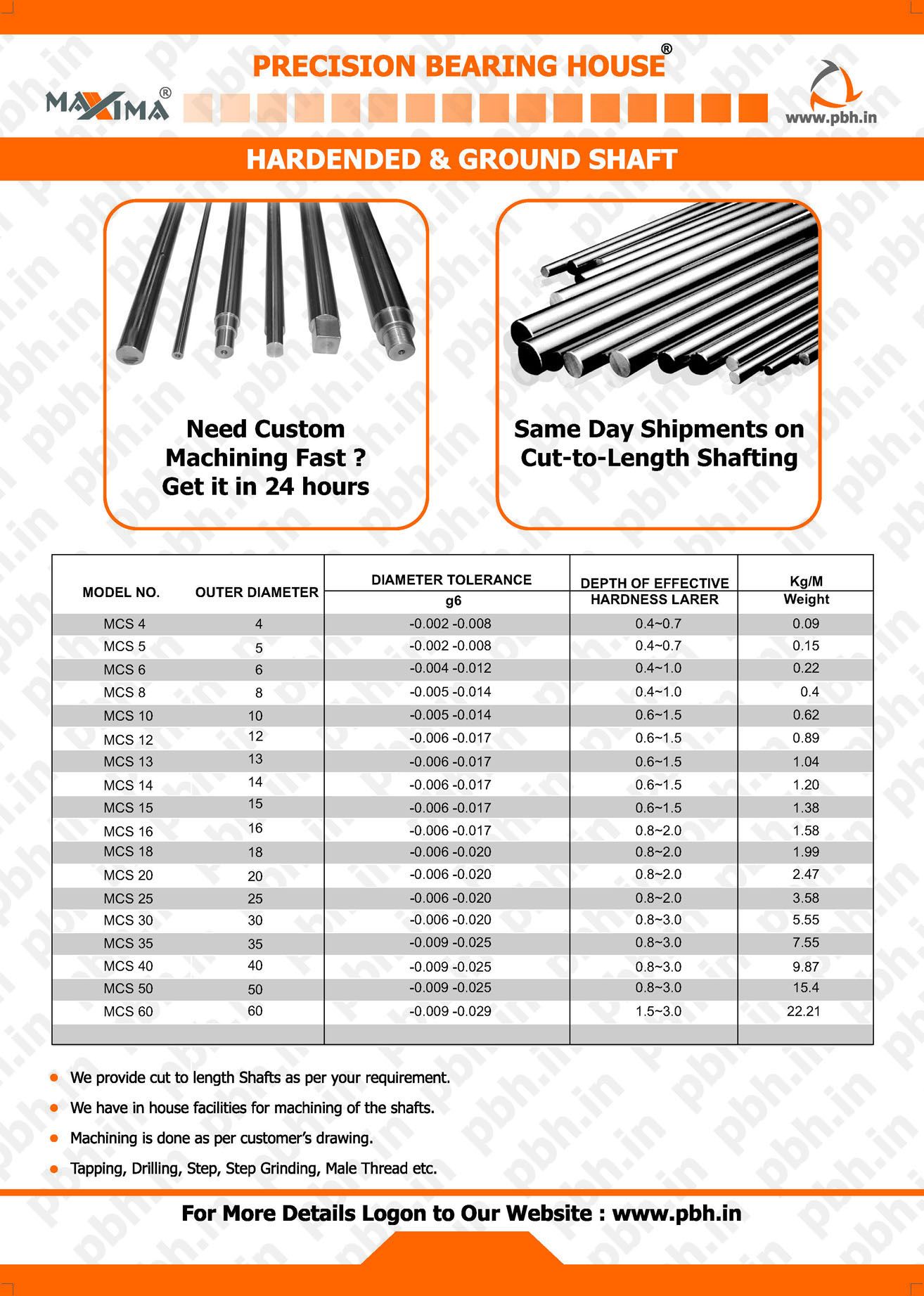

Specifications :

• Tolerance: h7


• Case Hardened & Ground Chrome Plated


• Material : 45 High Quality Carbon Steel S45C


• Hardness : HRC 55-60

• Depth of Hardness : 0.8 mm to 3 mm

Suitable for :

• Suitable Linear Bearings : LM 25 UU,  LM 25 LUU, LMF 25 UU, LMF 25 LUU, LMK 25 UU, LMK 25 LUU, LMH 25 UU, LMH 25 LUU, SC 25 UU, SC 25 LUU


• Applications: Linear Bearings, Pneumatic, Hydraulic applications
