MCS 13 - Length 500mm

    ₹ 275.00 ₹ 275.00 275.0 INR

    ₹ 275.00

    This combination does not exist.

    Add to Cart Buy Now
    Maxima Shaft Dia : 13 mm
    * Case Hardened & Ground Chrome Plated
    * g6 Tolerance : -6 μm to -17 μm
    * Material : 45 High Quality Carbon Steel S45C
    * Hardness : HRC 55-60
    * Suitable for Linear Bearings, Pneumatic, Hydraulic applications

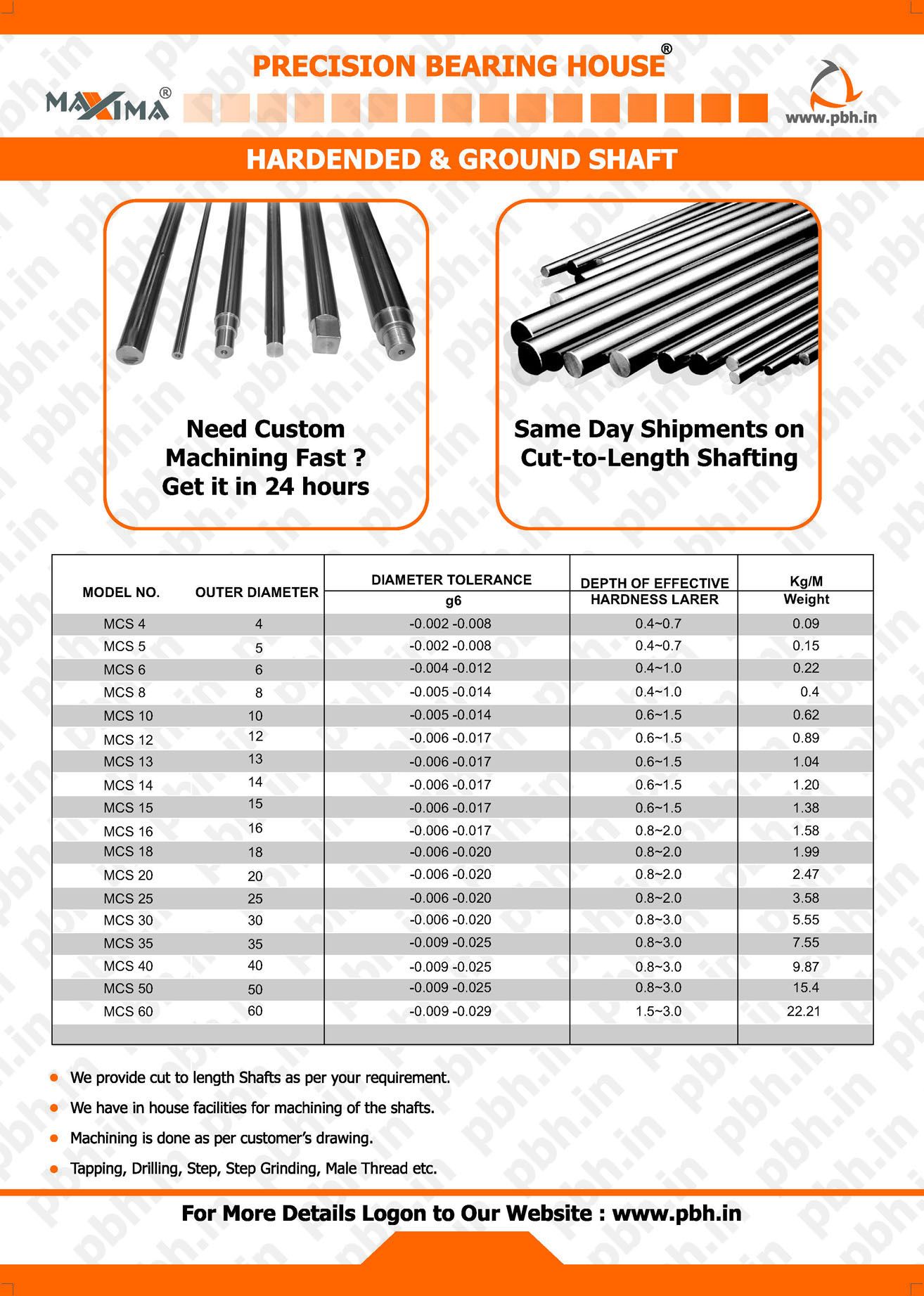

    [Maxima Hardened & Ground Shaft]

    Description


    * Maxima Shaft Dia : 13 mm

    * Case Hardened & Ground

    * g6 Tolerance

    * Suitable for Linear Bearings, Pneumatic, Hydraulic applications

    • Applications : Machine Centers ,Machine Tools, Precision machining machines,Heavy cutting machines, Punching machines,Marble cutting machines,Automatic equipments,Grinding machines,High speed transfer equipments, Injection Moulding machines, Measuring equipments

    • Suitable Shaft Supports : SK 13 or SHF 13

    • Suitable Linear Bearings : LM 13 UU, LM 13 LUU, LMF 13 UU, LMF 13 LUU, LMK 13 UU, LMK 13 LUU, LMH 13 UU, LMH 13 LUU, SC 13 UU, SC 13 LUU
