  2. MCS 12 - Length 1000mm
Public Pricelist INR

MCS 12 - Length 1000mm

    ₹ 490.00 ₹ 490.00 490.0 INR

    ₹ 490.00

    This combination does not exist.

    Add to Cart Buy Now
    Maxima Shaft Dia : 12 mm
    * Case Hardened & Ground Chrome Plated
    * g6 Tolerance : -6 μm to -17 μm
    * Material : 45 High Quality Carbon Steel S45C
    * Hardness : HRC 55-60
    * Suitable for Linear Bearings, Pneumatic, Hydraulic applications

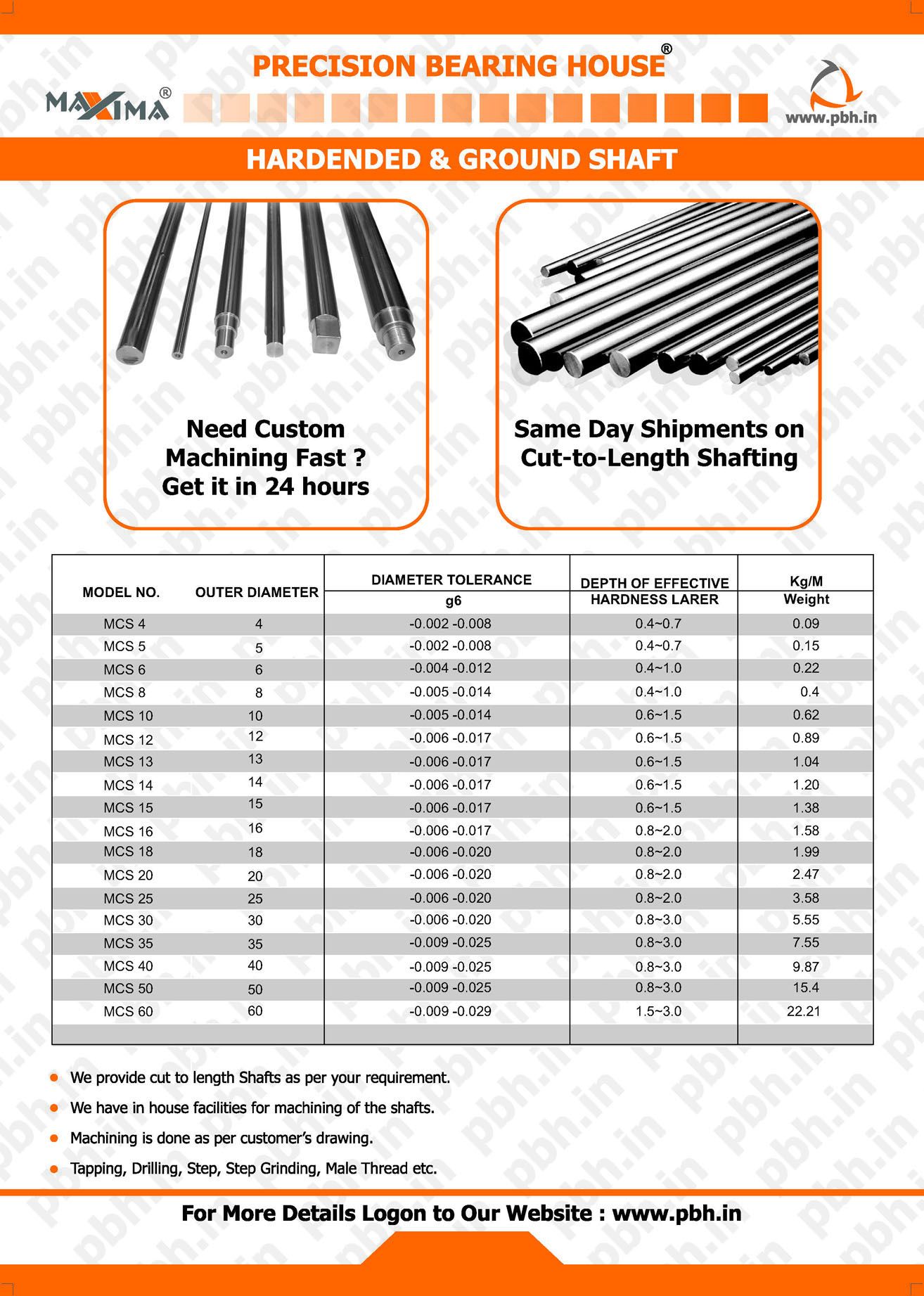

    [Maxima Hardened & Ground Shaft]

    Description


    * Maxima Shaft Dia : 12 mm

    * Case Hardened & Ground

    * g6 Tolerance

    * Suitable for Linear Bearings, Pneumatic, Hydraulic applications

    • Applications : Machine Centers ,Machine Tools, Precision machining machines,Heavy cutting machines, Punching machines,Marble cutting machines,Automatic equipments,Grinding machines,High speed transfer equipments, Injection Moulding machines, Measuring equipments

    • Suitable Shaft Supports : SK 12 or SHF 12

    • Suitable Linear Bearings : LM 12 UU, LM 12 LUU, LMF 12 UU, LMF 12 LUU, LMK 12 UU, LMK 12 LUU, LMH 12 UU, LMH 12 LUU, SC 12 UU, SC 12 LUU
