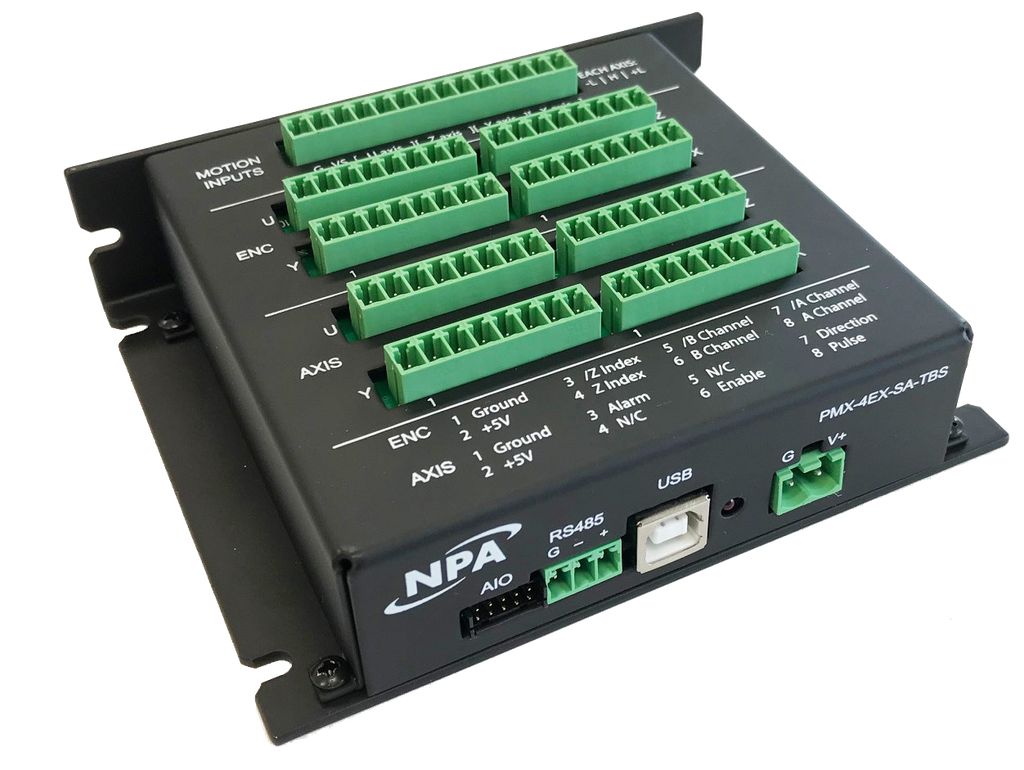

PMX-4EX-SA-TBS
4-Axis Motion Controller
Features
4 Axis Advanced Motion Controller
USB 2.0 and RS-485 Communication
6M maximum pulse rate output
Trapezoidal or s-curve acceleration
On-the-fly speed change
Features
Continuous linear coordinated buffered XYZ move
XYZU linear coordinated motion
XY circular and arc coordinated motion
Homing using Home and/or Index encoder
channel
Opto-isolated +Limit, -Limit, Home, and Alarm inputs per axis
Features
- Pulse/Dir/Enable open collector outputs per axis
- Single-ended or differential quadrature encoder inputs per axis
- Opto-isolated Digital Inputs (8)
- Opto-isolated Digital Outputs (8)
- Analog inputs 10-bit resolution (8)
Features
- Built-in joystick control for XYZU axes
- High speed position capture inputs and sync outputs
- Built-in StepNLoop closed loop control algorithm
- BASIC-like standalone programming language
- Multi-task programming support
System drawing
