PGW15CC

https://pbhmaxima.odoo.com/web/image/product.template/63325/image_1920?unique=eefdb9d

[PBH Block for Linear Guide]

PBH Linear Guide PGW15CC

The PGW15CC is a Wide/Flange linear guide block designed for heavy-load applications requiring high precision and rigidity. As a core component of your linear motion system, it features a four-row ball design that ensures equal load ratings in all radial, reverse radial, and lateral directions. The self-aligning capability absorbs installation errors and provides smooth linear motion for a long service life.


  • High accuracy
  • Low Noise
  • Smooth Movement
  • High Load Rating
  • 4-Row Even Load Design
  • Equivalent & Compatible with Hiwin HGW15CC

₹ 990.00 990.0 INR ₹ 990.00 Per Nos.

(Inc GST)
₹ 990.00 (+ GST 18% extra)

₹ 990.00

Not Available For Sale

This combination does not exist.

PGW15CC
PBH Linear Guideway, LM Guide *High accuracy *Low Noise *Smooth Movement *High Load Rating *PGH 4-Row Even Load Design *Equivalent & Compatible with Hiwin HGW15CC
Contact Us

Choose Rail :


Your Dynamic Snippet will be displayed here... This message is displayed because you did not provided both a filter and a template to use.

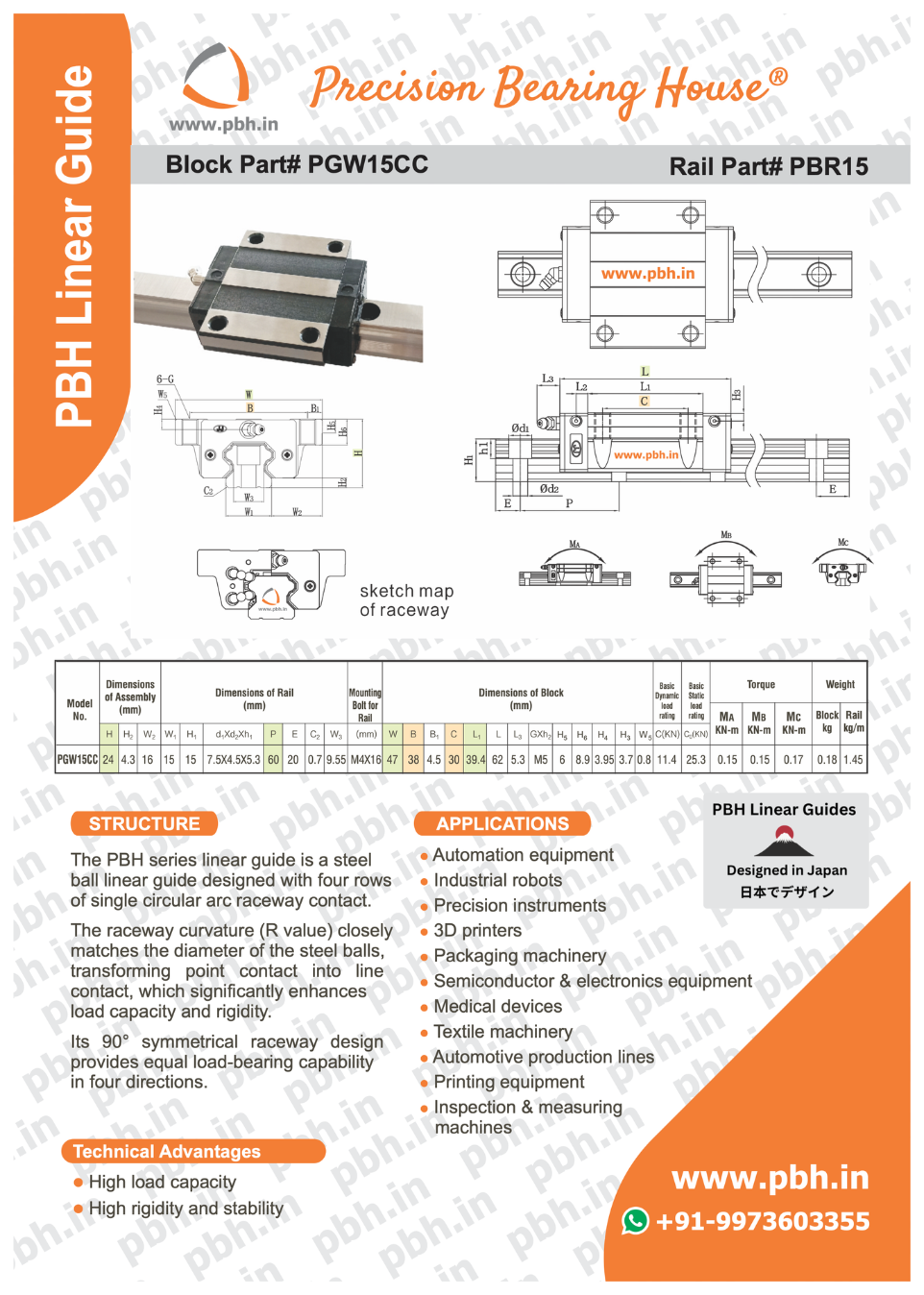

Specification Sheet / Product Data

Linear Guide / LM Guide PGW15CC

Features

PBH Linear Guide

High Rigidity & Precision

Our linear guides offer exceptional stiffness and positioning accuracy up to 0.01mm. This ensures stable, repeatable motion critical for high-performance machinery.

Self-Aligning Capability

The unique raceway design allows the guide to automatically compensate for minor installation errors and shaft misalignments, simplifying the assembly process.

Enhanced Durability

Constructed from premium-grade GCr15 steel, our guides are highly resistant to wear and can withstand heavy dynamic and static loads for a long operational life.
