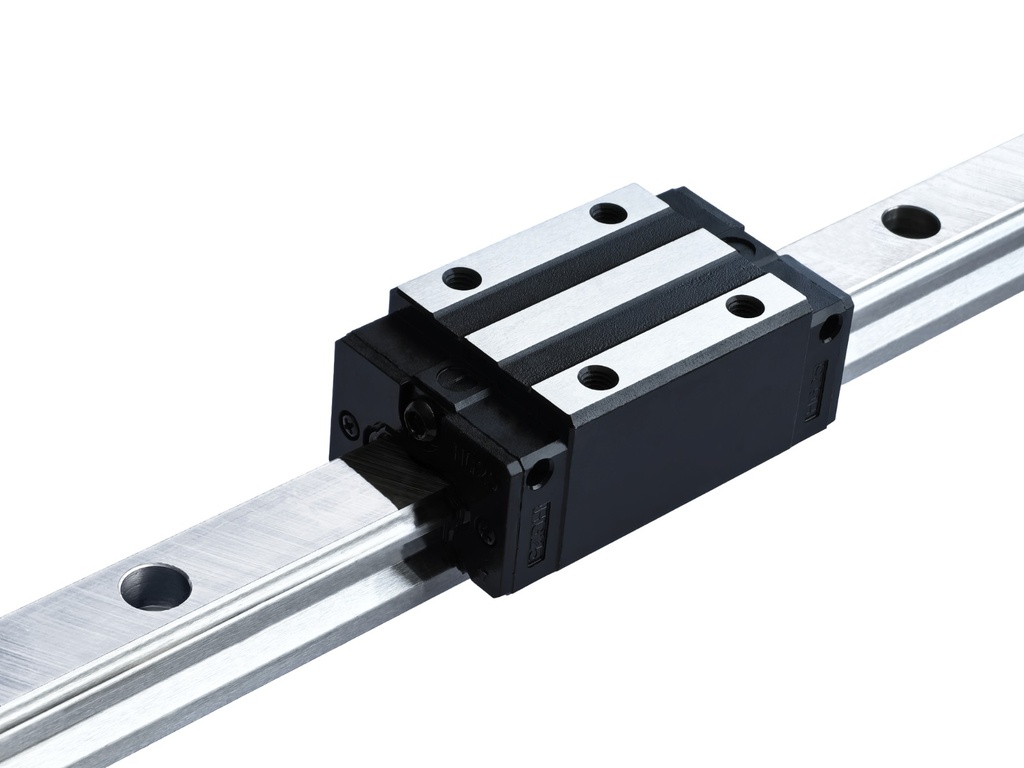

PGH25CA
[PBH Block for Linear Guide]
PBH Linear Guide
The PGH25CA is a square-type linear guide block designed for heavy-load applications requiring high precision and rigidity. As a core component of your linear motion system, it features a four-row ball design that ensures equal load ratings in all radial, reverse radial, and lateral directions. The self-aligning capability absorbs installation errors and provides smooth linear motion for a long service life.
- High accuracy
- Low Noise
- Smooth Movement
- High Load Rating
- 4-Row Even Load Design
- Compatible with HGH25CA
This product is linear block only. Rail has to be purchased separately. Rail Part Number is PGR 25

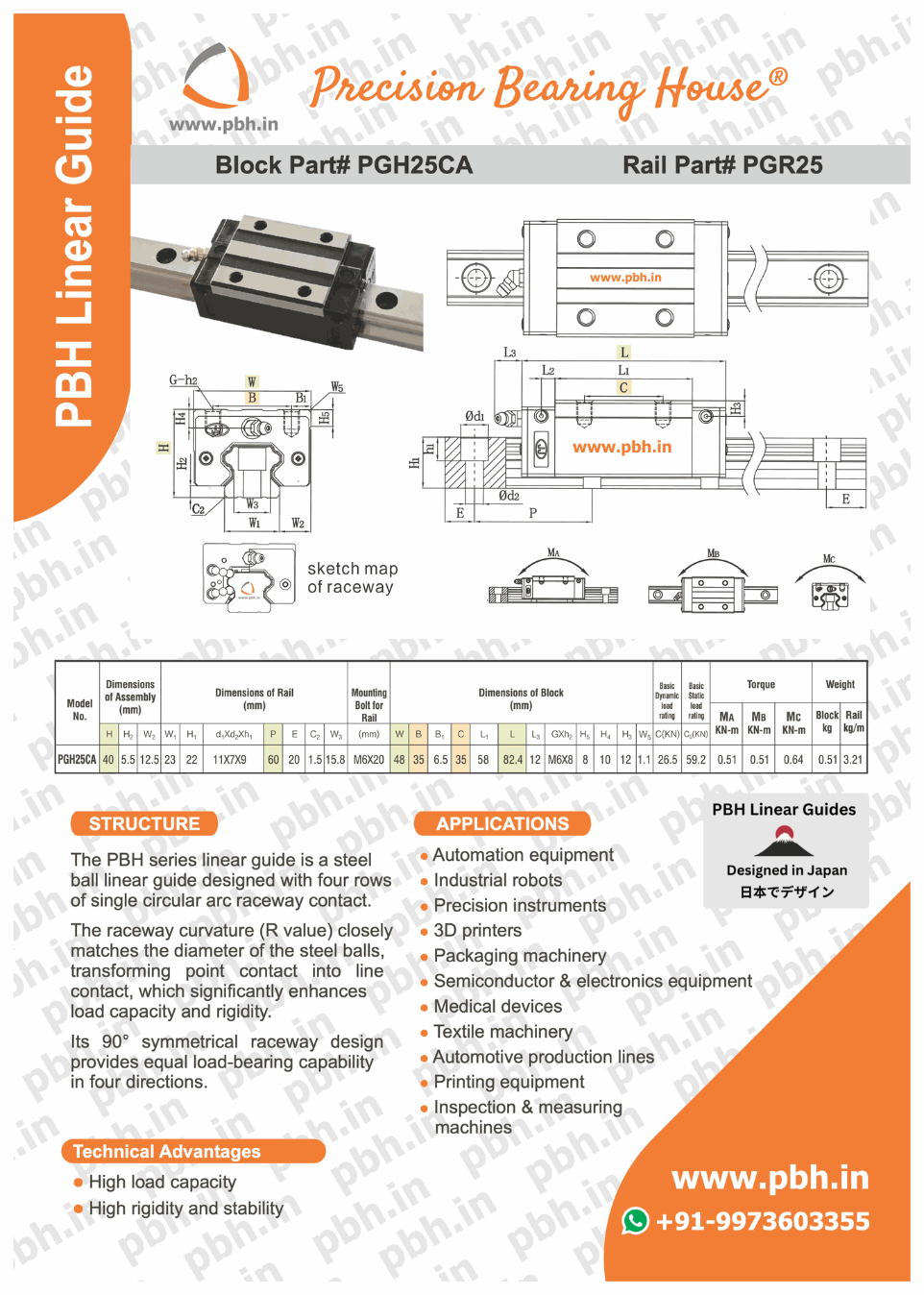

Specification Sheet / Product Data
Features
PBH Linear Guide
High Rigidity & Precision
Our linear guides offer exceptional stiffness and positioning accuracy up to 0.01mm. This ensures stable, repeatable motion critical for high-performance machinery.
Self-Aligning Capability
The unique raceway design allows the guide to automatically compensate for minor installation errors and shaft misalignments, simplifying the assembly process.
Enhanced Durability
Constructed from premium-grade GCr15 steel, our guides are highly resistant to wear and can withstand heavy dynamic and static loads for a long operational life.
