MCS 60 - Length 500mm

https://pbhmaxima.odoo.com/web/image/product.template/61512/image_1920?unique=5e25abf

[Maxima Hardened & Ground Shaft]

₹ 3,450.00 3450.0 INR ₹ 3,450.00 Per Nos.

(Inc GST)
₹ 3,450.00 (+ GST 18% extra)

₹ 3,450.00

Not Available For Sale

This combination does not exist.

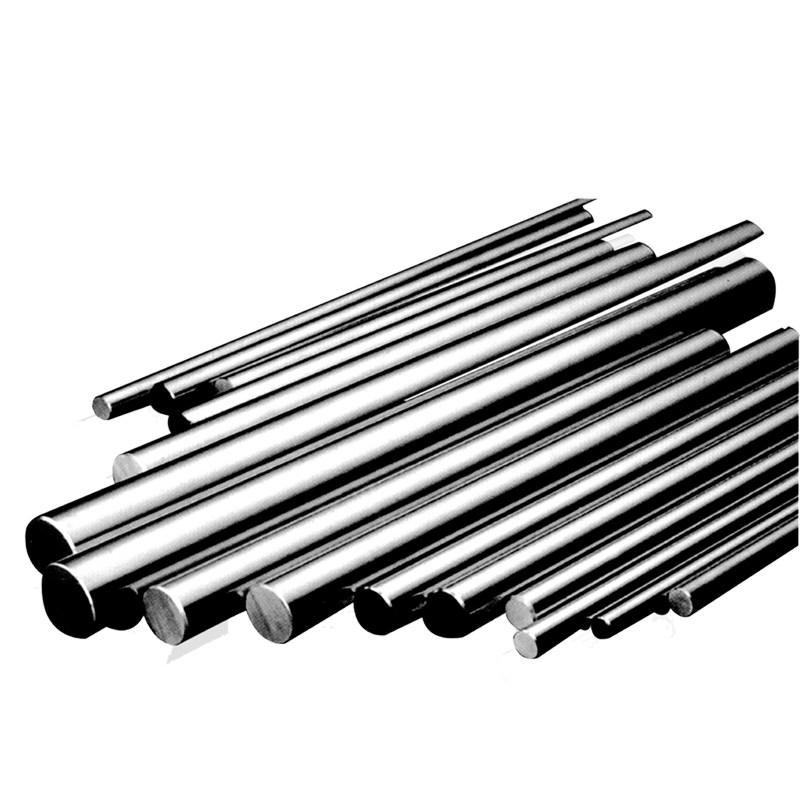

Maxima Shaft Dia : 60 mm
* Case Hardened & Ground Chrome Plated
* h7 Tolerance : -0 μm to -30 μm
* Material : 45 High Quality Carbon Steel S45C
* Hardness : HRC 55-60
* Suitable for Linear Bearings, Pneumatic, Hydraulic applications

Customised End Machining

  • Tapping

  • Threading

  • Drilling

  • Step

  • Keyway

  • Snap ring groove

  • Chamfering

 We have in house facilities for machining of the shafts.

for quote please email your drawing to sm@pbh.in

Specifications :

  • Tolerance: h7

  • Case Hardened & Ground Chrome Plated

  • Material : 45 High Quality Carbon Steel S45C

  • Hardness : HRC 55-60

  • Depth of Hardness : 0.8 mm to 3 mm

Suitable for :

  • Suitable Linear Bearings : LM 60 UU,  LM 60 LUU, LMF 60 UU, LMF 60 LUU, LMK 60 UU, LMK 60 LUU, LMH 60 UU, LMH 60 LUU, SC 60 UU, SC 60 LUU

  • Applications: Linear Bearings, Pneumatic, Hydraulic applications
