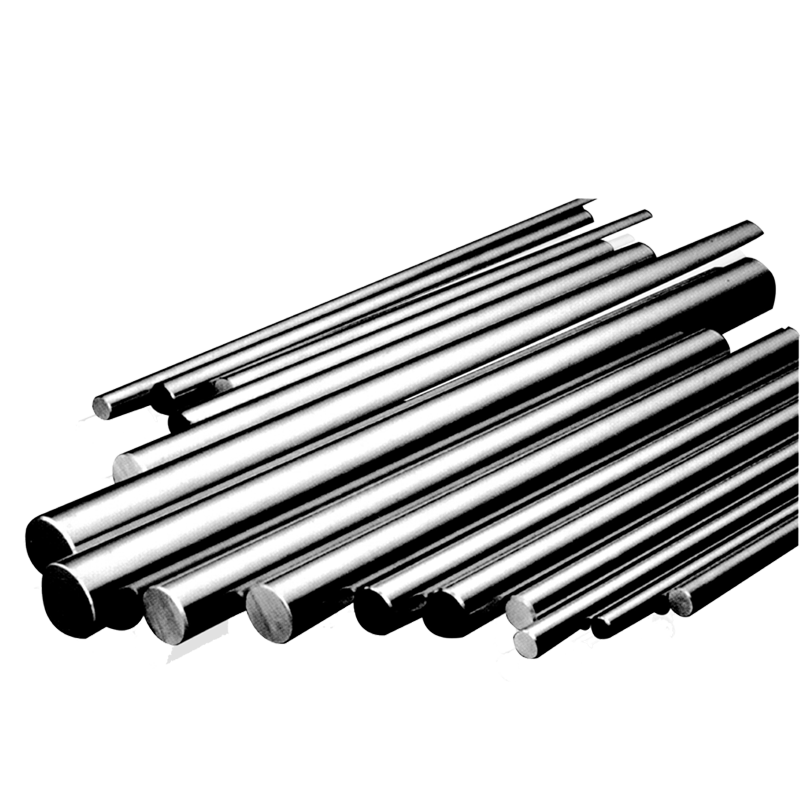

MCS 40 - Length 1500mm

https://pbhmaxima.odoo.com/web/image/product.template/61507/image_1920?unique=d4f9644

[Maxima Hardened & Ground Shaft]

₹ 3,150.00 3150.0 INR ₹ 3,150.00 Per Nos.

(Inc GST)
₹ 3,150.00 (+ GST 18% extra)

₹ 3,150.00

Not Available For Sale

This combination does not exist.

Maxima Shaft Dia : 40 mm
* Case Hardened & Ground Chrome Plated
* h7 Tolerance : -0 μm to -25 μm
* Material : 45 High Quality Carbon Steel S45C
* Hardness : HRC 55-60
* Suitable for Linear Bearings, Pneumatic, Hydraulic applications

Customised End Machining

  • Tapping

  • Threading

  • Drilling

  • Step

  • Keyway

  • Snap ring groove

  • Chamfering

 We have in house facilities for machining of the shafts.

for quote please email your drawing to sm@pbh.in

Specifications :

  • Tolerance: h7

  • Case Hardened & Ground Chrome Plated

  • Material : 45 High Quality Carbon Steel S45C

  • Hardness : HRC 55-60

  • Depth of Hardness : 0.8 mm to 3 mm

Suitable for :

  • Suitable Linear Bearings : LM 40 UU,  LM 40 LUU, LMF 40 UU, LMF 40 LUU, LMK 40 UU, LMK 40 LUU, LMH 40 UU, LMH 40 LUU, SC 40 UU, SC 40 LUU

  • Applications: Linear Bearings, Pneumatic, Hydraulic applications

Maxima Case Hardened & Ground Shaft Chrome Plated

Tolerance Table h7

Part NumberOuter Diameter (mm)Diameter Tolerance in micrometer h7
MCS 66-0 μm to -12 μm
MCS 88-0 μm to -12 μm
MCS 1010-0 μm to -15 μm
MCS 1212-0 μm to -18 μm
MCS 1313-0 μm to -18 μm
MCS 1414-0 μm to -18 μm
MCS 1515-0 μm to -18 μm
MCS 1616-0 μm to -18 μm
MCS 1818-0 μm to -18 μm
MCS 2020-0 μm to -21 μm
MCS 2525-0 μm to -21 μm
MCS 3030-0 μm to -21 μm
MCS 3535-0 μm to -25 μm
MCS 4040-0 μm to -25 μm
MCS 5050-0 μm to -25 μm
MCS 6060-0 μm to -30 μm
