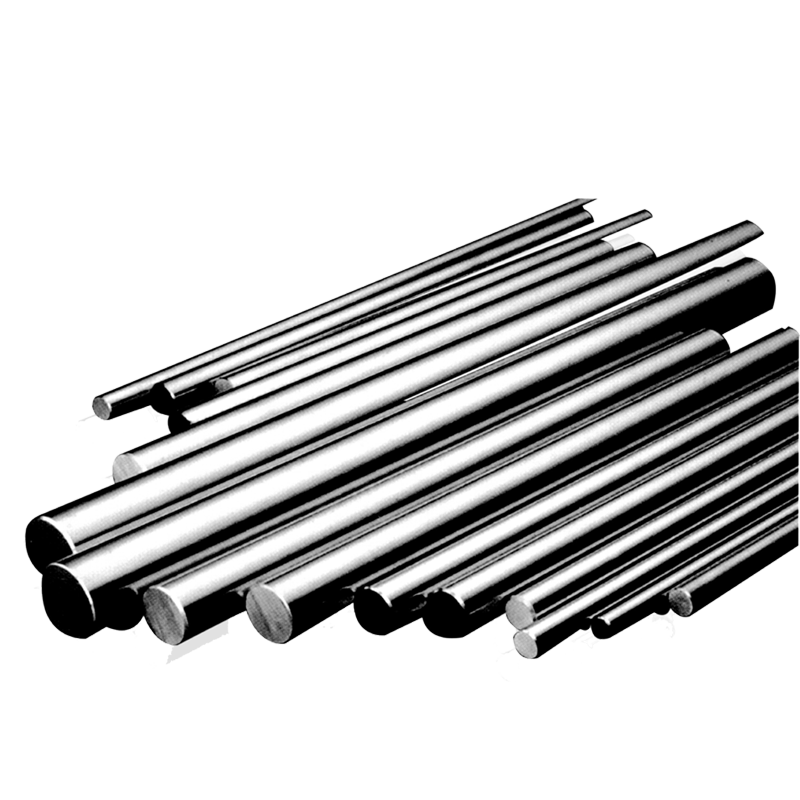

MCS 25 - Length 2000mm
[Maxima Hardened & Ground Shaft]
Customised End Machining
Tapping
Threading
Drilling
Step
Keyway
Snap ring groove
Chamfering
Tapping
Threading
Drilling
Step
Keyway
Snap ring groove
Chamfering
We have in house facilities for machining of the shafts.
for quote please email your drawing to sm@pbh.in
Specifications :
Tolerance: h7
Case Hardened & Ground Chrome Plated
Material : 45 High Quality Carbon Steel S45C
Hardness : HRC 55-60
Depth of Hardness : 0.8 mm to 3 mm
Tolerance: h7
Case Hardened & Ground Chrome Plated
Material : 45 High Quality Carbon Steel S45C
Hardness : HRC 55-60
Depth of Hardness : 0.8 mm to 3 mm
Suitable for :
- Suitable Linear Bearings : LM 25 UU, LM 25 LUU, LMF 25 UU, LMF 25 LUU, LMK 25 UU, LMK 25 LUU, LMH 25 UU, LMH 25 LUU, SC 25 UU, SC 25 LUU
- Applications: Linear Bearings, Pneumatic, Hydraulic applications
Maxima Case Hardened & Ground Shaft Chrome Plated
Tolerance Table h7
