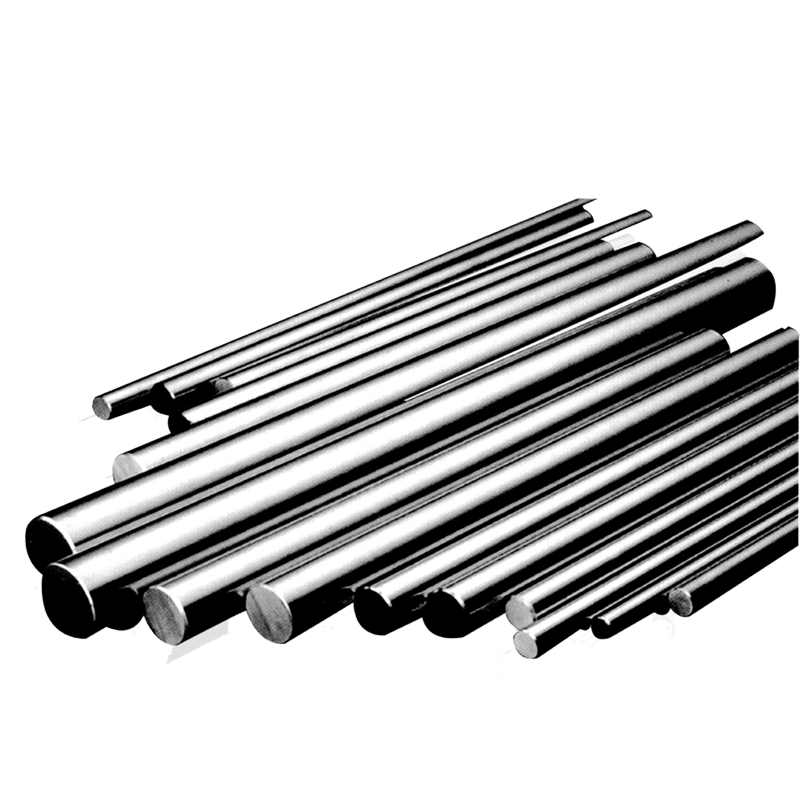

MCS 16 - Length 2000mm

https://www.pbh.in/web/image/product.template/61488/image_1920?unique=b1fed80

[Maxima Hardened & Ground Shaft]

₹ 1,180.00 1180.0 INR ₹ 1,180.00 Per Nos.

(Inc GST)
₹ 1,000.00 (+ GST 18% extra)

₹ 1,000.00

    This combination does not exist.

    ADD TO CART BUY NOW
    Maxima Shaft Dia : 16 mm
    * Case Hardened & Ground Chrome Plated
    * h7 Tolerance : -0 μm to -18 μm
    * Material : 45 High Quality Carbon Steel S45C
    * Hardness : HRC 55-60
    * Suitable for Linear Bearings, Pneumatic, Hydraulic applications

    Customised End Machining

    • Tapping

    • Threading

    • Drilling

    • Step

    • Keyway

    • Snap ring groove

    • Chamfering

     We have in house facilities for machining of the shafts.

    for quote please email your drawing to sm@pbh.in

    Specifications :

    • Tolerance: h7

    • Case Hardened & Ground Chrome Plated

    • Material : 45 High Quality Carbon Steel S45C

    • Hardness : HRC 55-60

    • Depth of Hardness : 0.8 mm to 3 mm

    Suitable for :

    • Suitable Linear Bearings : LM 16 UU,  LM 16 LUU, LMF 16 UU, LMF 16 LUU, LMK 16 UU, LMK 16 LUU, LMH 16 UU, LMH 16 LUU, SC 16 UU, SC 16 LUU

    • Applications: Linear Bearings, Pneumatic, Hydraulic applications

    Maxima Case Hardened & Ground Shaft Chrome Plated

    Tolerance Table h7

    Part NumberOuter Diameter (mm)Diameter Tolerance in micrometer h7
    MCS 66-0 μm to -12 μm
    MCS 88-0 μm to -12 μm
    MCS 1010-0 μm to -15 μm
    MCS 1212-0 μm to -18 μm
    MCS 1313-0 μm to -18 μm
    MCS 1414-0 μm to -18 μm
    MCS 1515-0 μm to -18 μm
    MCS 1616-0 μm to -18 μm
    MCS 1818-0 μm to -18 μm
    MCS 2020-0 μm to -21 μm
    MCS 2525-0 μm to -21 μm
    MCS 3030-0 μm to -21 μm
    MCS 3535-0 μm to -25 μm
    MCS 4040-0 μm to -25 μm
    MCS 5050-0 μm to -25 μm
    MCS 6060-0 μm to -30 μm
