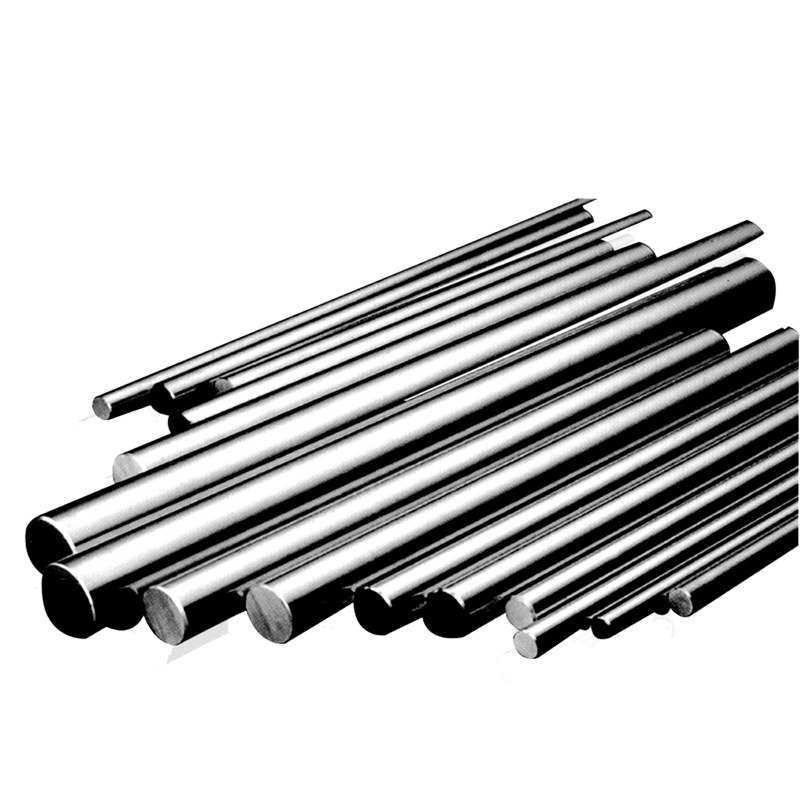

MCS 13 - Length 500mm

    ₹ 225.00 ₹ 225.00 225.0 INR

    ₹ 225.00

    This combination does not exist.

    Add to Cart Buy Now
    Maxima Shaft Dia : 13 mm
    * Case Hardened & Ground Chrome Plated
    * g6 Tolerance : -6 μm to -17 μm
    * Material : 45 High Quality Carbon Steel S45C
    * Hardness : HRC 55-60
    * Suitable for Linear Bearings, Pneumatic, Hydraulic applications

    [Maxima Hardened & Ground Shaft]


    Customised End Machining

    • Tapping

    • Threading

    • Drilling

    • Step

    • Keyway

    • Snap ring groove

    • Chamfering

     We have in house facilities for machining of the shafts.

    for quote please email your drawing to sm@pbh.in

    Specifications :

    • Tolerance: h7

    • Case Hardened & Ground Chrome Plated

    • Material : 45 High Quality Carbon Steel S45C

    • Hardness : HRC 55-60

    • Depth of Hardness : 0.8 mm to 3 mm

    Suitable for :

    • Suitable Linear Bearings : LM 13 UU,  LM 13 LUU, LMF 13 UU, LMF 13 LUU, LMK 13 UU, LMK 13 LUU, LMH 13 UU, LMH 13 LUU, SC 13 UU, SC 13 LUU

    • Applications: Linear Bearings, Pneumatic, Hydraulic applications

    Maxima Case Hardened & Ground Shaft Chrome Plated

    Tolerance Table h7

    Part NumberOuter Diameter (mm)Diameter Tolerance in micrometer h7
    MCS 66-0 μm to -12 μm
    MCS 88-0 μm to -12 μm
    MCS 1010-0 μm to -15 μm
    MCS 1212-0 μm to -18 μm
    MCS 1313-0 μm to -18 μm
    MCS 1414-0 μm to -18 μm
    MCS 1515-0 μm to -18 μm
    MCS 1616-0 μm to -18 μm
    MCS 1818-0 μm to -18 μm
    MCS 2020-0 μm to -21 μm
    MCS 2525-0 μm to -21 μm
    MCS 3030-0 μm to -21 μm
    MCS 3535-0 μm to -25 μm
    MCS 4040-0 μm to -25 μm
    MCS 5050-0 μm to -25 μm
    MCS 6060-0 μm to -30 μm
