600 mmStroke
760 mmOverall length (Stroke + 160)
60 mmOverall width
83 mmHeight to carriage top
60 × 60 mmCarriage
16 × 5 mmBall screw, dia × pitch
Dimension Drawing: Top, Side & Isometric ViewAll dimensions in mm
| Overall dimensions (mm) | ||
|---|---|---|
| L | Overall length | Stroke + 160 |
| W | Overall width (end plates) | 60 |
| H | Height to top of carriage | 83 |
| H₀ | End plate height | 81 |
| C | Ball screw centre from base | 63 |
| Carriage (mm) | ||
|---|---|---|
| A | Carriage width (across) | 60 |
| B | Carriage length (along travel) | 60 |
| F | Ball nut flange beyond carriage | 20 |
| Holes | Mounting, pitch 24 + 24 × 41 | 6 × M6 |
| Sensor | Each side | 2 × M4 |
| Base and guide | ||
|---|---|---|
| Base | Base plate | Aluminium T-slot profile 60 × 15 |
| Rail | Size 15 linear guide rail | 1 no. |
| Block | Linear guide block | 1 no. |
| Drive and motor plate (mm) | ||
|---|---|---|
| Ball screw | Diameter × pitch | 16 × 5 |
| Coupling | Jaw coupling with spider | Included |
| NEMA 23 | Plate height / thickness | 81 / 12 |
| 400 W servo | Plate height / thickness | 81 / 15 |
Motor is not included; the motor plate is made to suit your motor. Stroke is customisable; overall length = Stroke + 160 mm. Click the drawing to open it full size.

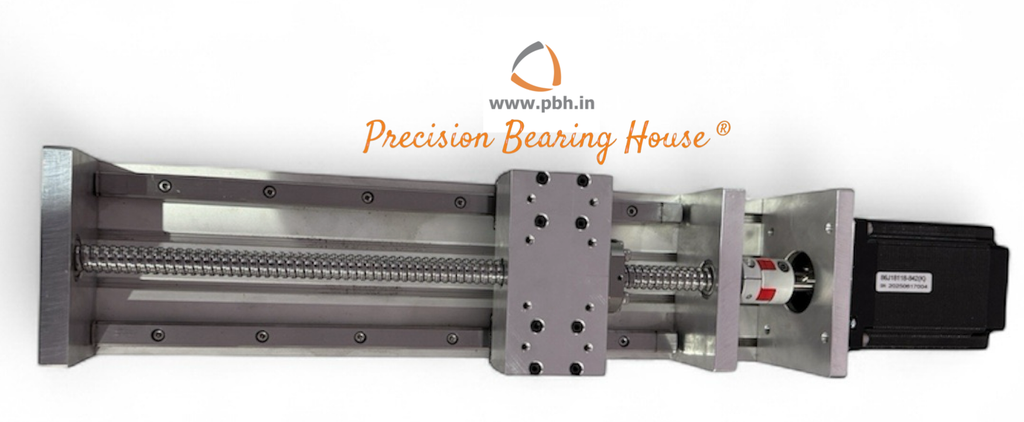

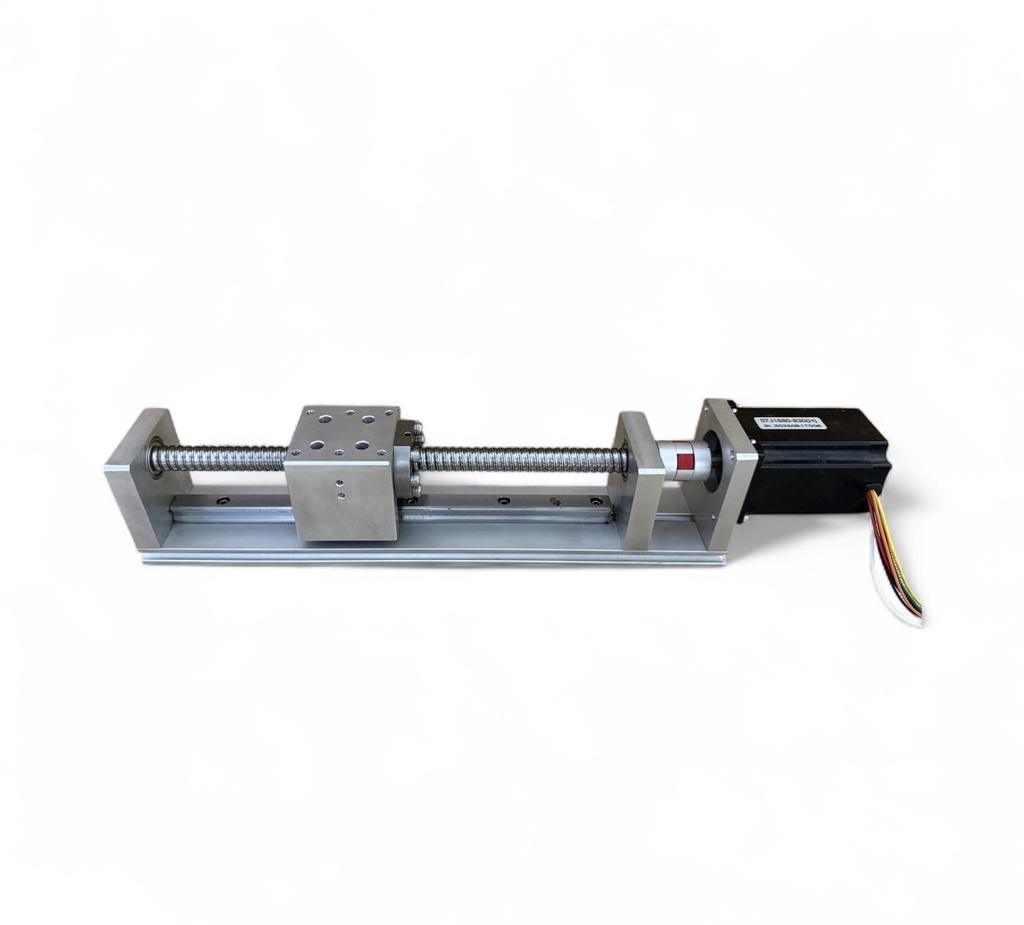

Max Eco 60 – Precision Linear Ball Screw Actuator
The Max Eco 60 from Precision Bearing House® is a compact ball screw actuator for accurate and reliable linear motion in light automation and machine building.
Compact Design, High Precision
A ball screw drive gives smooth, accurate and repeatable movement. The rigid aluminium body and precisely machined components keep the actuator stable in continuous use.
Key Features
- Overall dimensions: 60 mm width, length = Stroke + 160 mm
- One 15 mm linear guide rail and one block
- 16 mm ball screw with 5 mm pitch
- Motor mounting plate to suit your motor: NEMA 23 (57 frame) or 400 W servo (motor is not included)
- Stroke customisation: we can make the stroke as per your requirement
Applications
The Max Eco 60 is suitable for a wide range of automation tasks:
- Pick-and-place automation
- Inspection and testing systems
- 3D printing and additive manufacturing
- Packaging and assembly lines
Why Choose PBH Actuators?
- Over 25 years of motion control expertise
- In-house engineering and support tailored to Indian industry needs
- Competitive pricing without compromise on quality
- Custom stroke lengths made to order
