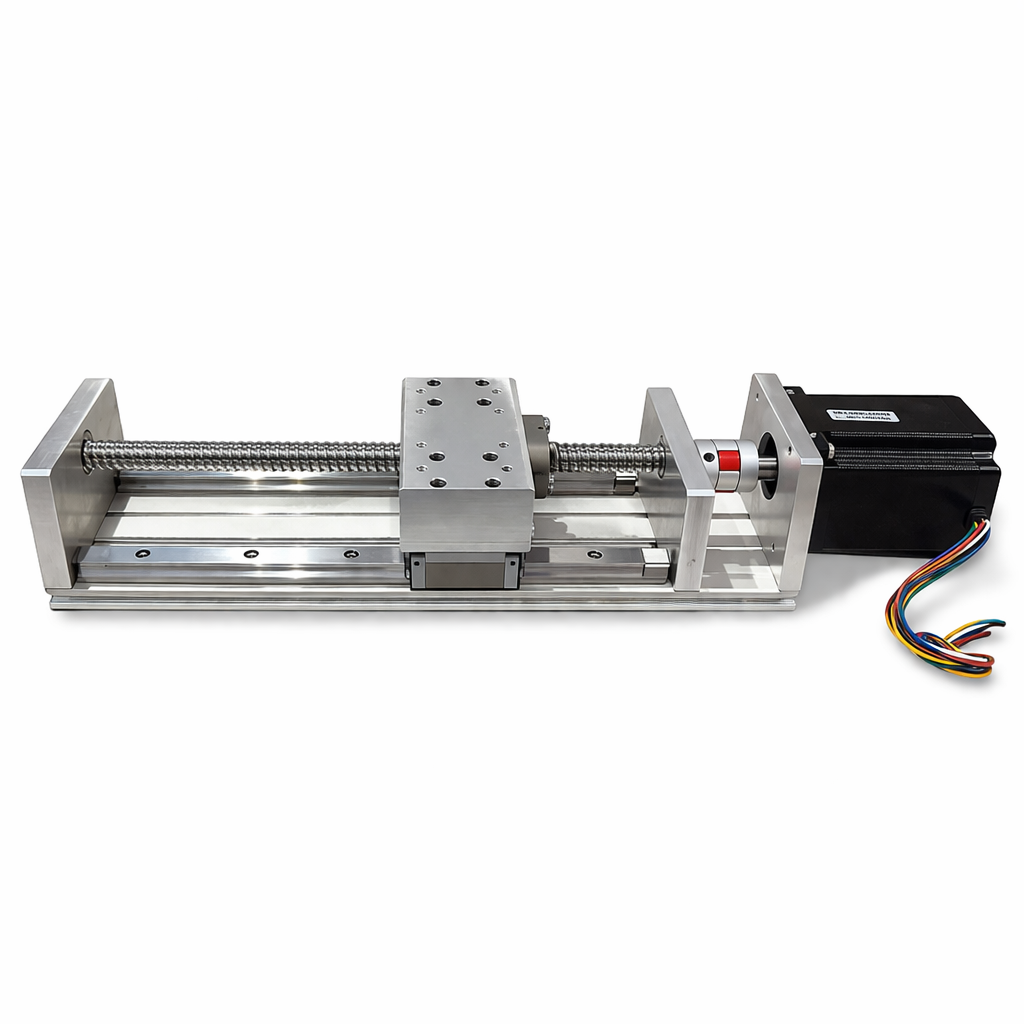

MAX ECO 120 OLA Stroke 1300mm
Ball Screw Actuator / Linear Slide
Ball Screw Actuator XY Table ball screw linear slide. The Max Eco 120 is a compact, rigid Ball Screw, actuator built with two 15 mm Linear Guide rails and two blocks for superior stability. Driven by a 16 mm Ball Screw with 5 mm pitch, it delivers smooth, accurate, and repeatable motion. Perfect for CNC, automation, and assembly applications with customisable stroke lengths.
** Motor in not Included in the Price**
This Ball Screw Linear Slide can be used to make XY Table XYZ Table. Ball Screw Actuator
Despatch 3 Working Days
Max Eco 120

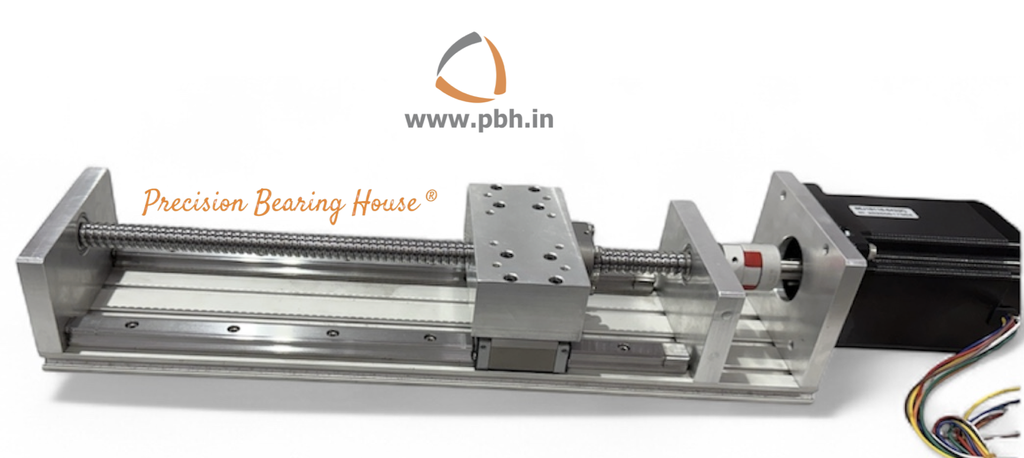

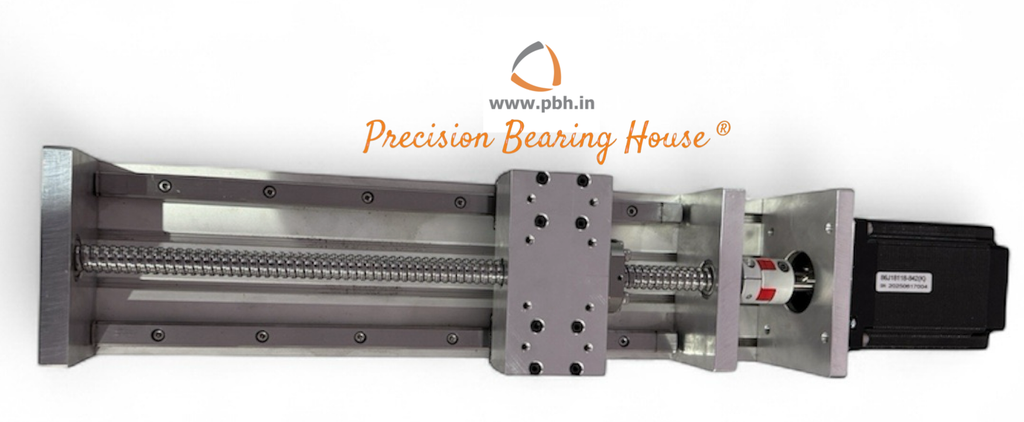

Max Eco 120 – Precision Linear Ball Screw Actuator
Introducing the Max Eco 120, the latest innovation from Precision Bearing House®, engineered for accuracy, reliability, and efficiency in linear motion applications.
Compact Design, High Precision
Built with a ball screw drive system, the Max Eco 120 ensures smooth, backlash-free movement. Its rigid aluminum body and precisely machined components guarantee long-lasting stability even under continuous use.
Key Features & Design
- Overall Dimensions: 120 mm Width, length = Stroke + 170 mm
- Two 15 mm Linear Guide rails and two blocks for superior stability
- 16 mm Ball Screw with 5 mm pitch
- Motor Mounting Included (Motor is not Include)
- Stroke Customisation: We can customise stroke as per your requirement
Applications
The Max Eco 120 is ideal for a wide range of automation and industrial tasks:
- CNC machinery and precision cutting
- Pick-and-place automation
- Inspection and testing systems
- 3D printing and additive manufacturing
- Packaging and assembly lines
Why Choose PBH Actuators?
- Over 25 years of motion control expertise
- In-house engineering and support tailored to Indian industry needs
- Competitive pricing without compromise on quality
- Ready stock and fast customization options
