200 mmStroke
430 mmOverall length L1 (Stroke + 230)
128 mmOverall height
230 × 170 mmCarriage plate
25 × 5 mmBall screw 2505, dia × pitch
4 blocks2 on each of the 2 rails (20 mm guides)
Dimension Drawing: End, Side & Top ViewAll dimensions in mm
| Overall dimensions (mm) | ||
|---|---|---|
| L1 | Overall length (without motor block) | Stroke + 230 |
| H | Height to top of carriage | 128 |
| H₀ | Body height | 109 |
| W | Body width | 178 |
| C | Ball screw centre from base | 49 |
| Carriage and motor block (mm) | ||
|---|---|---|
| A | Carriage plate width | 230 |
| B | Carriage plate length | 170 |
| Holes | Mounting holes | Ø10.2 / Ø6.2 |
| M | Motor mounting block | 90 × 80 |
| Frame | Motor frame size | 57, 60 or 86 |
| Construction | ||
|---|---|---|
| Cover | Metal cover for dust protection | Yes |
| Guides | 20 mm linear guides | 4 linear blocks (2 on each rail) |
| Ball screw | 2505, diameter × pitch | 25 × 5 |
| Supports | Standard ball screw support units | Included |
| Coupling | Oldham coupling | OD 32 mm |
| Optional items | ||
|---|---|---|
| Motor | Stepper motor | Optional |
Motor is not included in the price. Click the drawing to open it full size.

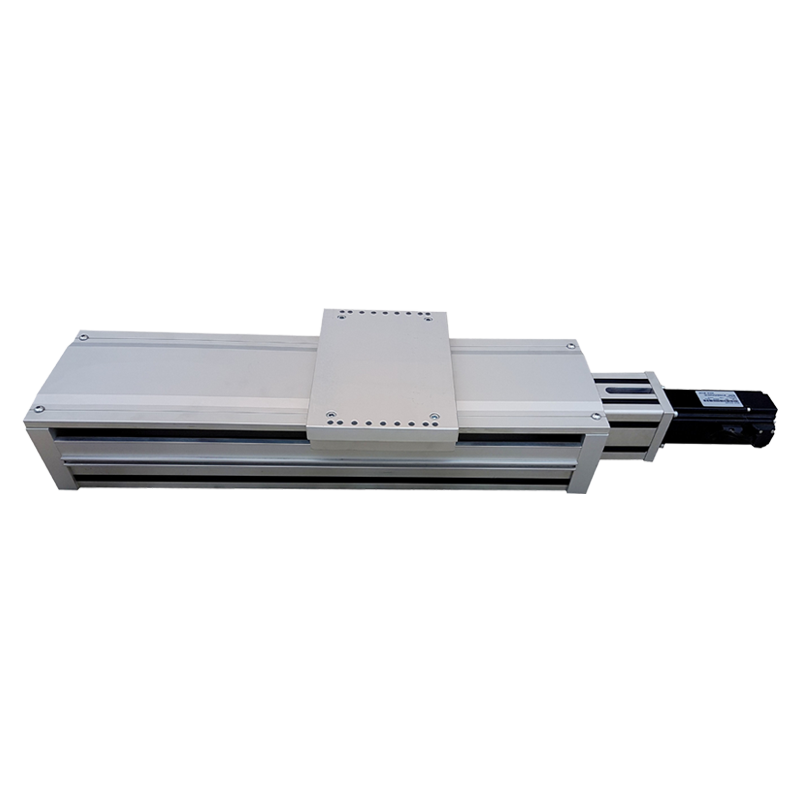

Maxima MAX 170 CHA: Ball Screw Actuator with Metal Cover
An enclosed linear actuator for automation. The metal cover keeps dust off the ball screw and linear guides, and the slotted aluminium base lets you bolt it down anywhere along its length. This model runs on 4 linear blocks (2 on each rail) (20 mm guides) with a 2505 ball screw: 25 mm diameter, 5 mm pitch.
Features
Metal coverProtects the ball screw and guides from dust.
Light weightAluminium construction throughout.
Slotted base plateMount with nuts at any position along the length.
Custom motor blockMotor mounting block for frame size 57, 60 or 86; can be customised.
Applications
- Automation
- Pick and place
- Engraving
- Liquid dispensing
- Material handling
How to order
MAX 170Series
CMetal cover
H2 blocks/rail
A5 mm pitch
200Stroke, mm
- C: metal cover type
- L: 2 blocks, 1 on each rail · H: 4 blocks, 2 on each rail
- Ball screw: A = 2505 (5 mm pitch) · B = 2510 (10 mm pitch) · C = 2525 (25 mm pitch)
Stroke and overall length
| Stroke (mm) | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1200 | 1300 | 1400 | 1500 | 1600 | 1700 | 1800 | 1900 | 2000 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L1 (mm) | 430 | 530 | 630 | 730 | 830 | 930 | 1030 | 1130 | 1230 | 1330 | 1430 | 1530 | 1630 | 1730 | 1830 | 1930 | 2030 | 2130 | 2230 |
L1 = stroke + 230 mm. Linked strokes open their own product page. Other strokes are made to order: email ss@pbh.in or call +91 99736 03355.
