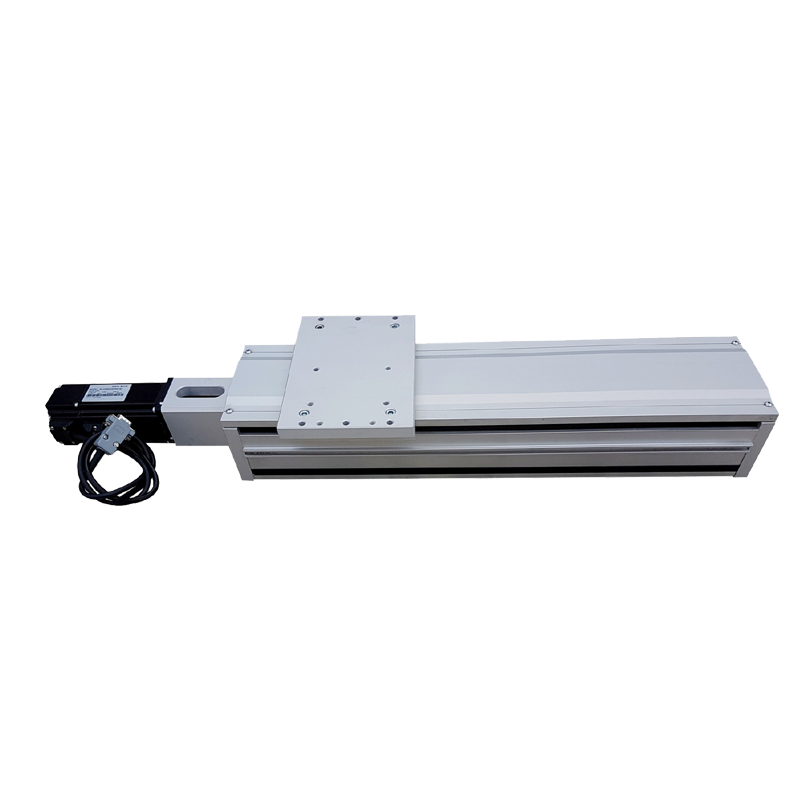

MAX 140 CHA 1500 mm Stroke
[Maxima Ball Screw Actuator]

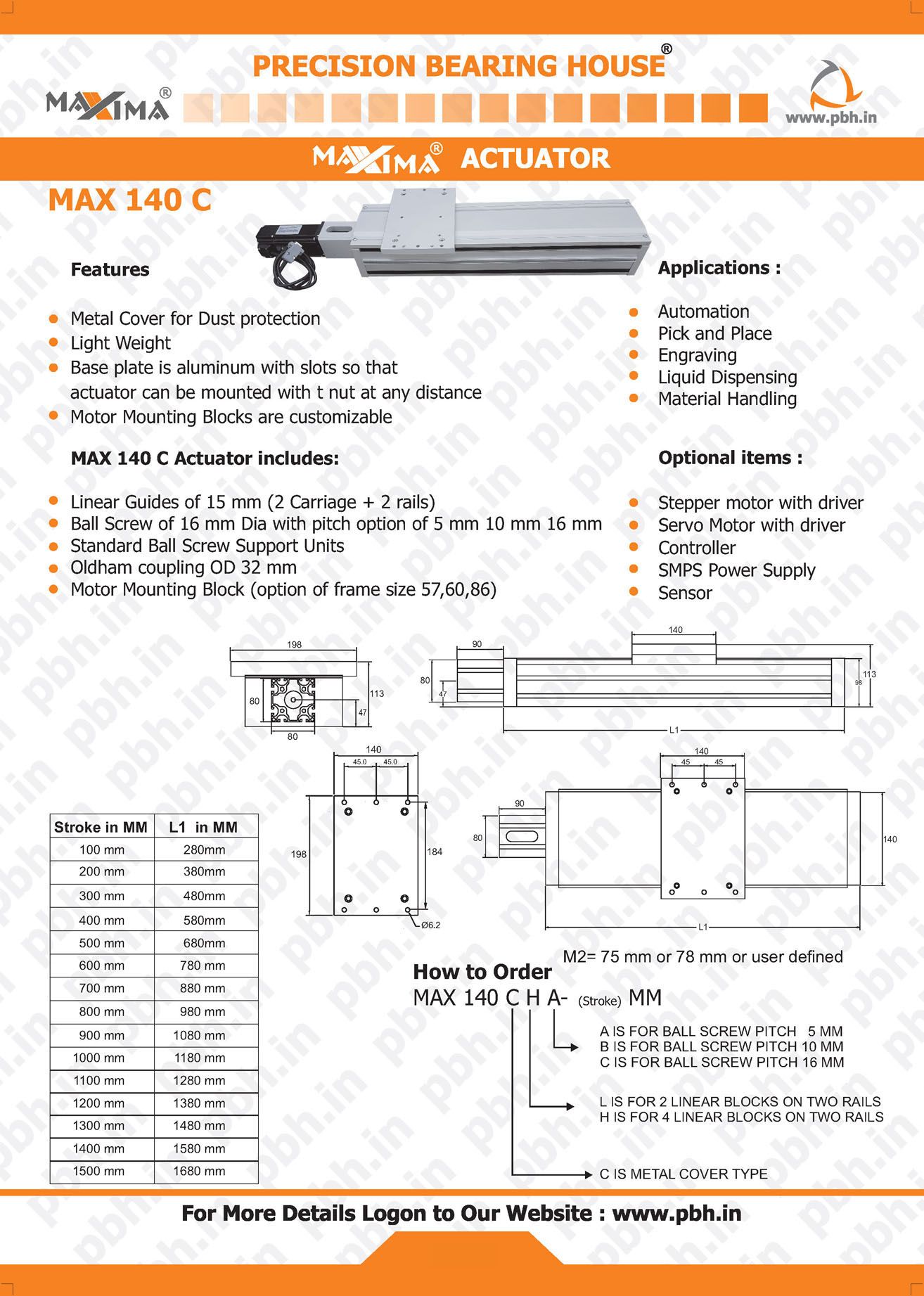

Key Specifications
- Linear Guides: 15 mm wide, with 4 carriages on 2 precision rails for enhanced stability and load-bearing capacity
- Ball Screw: 16 mm diameter with selectable pitch options of 5 mm, 10 mm, or 16 mm
- Coupling: Durable Jaw flex coupling
- Motor Mounting Block: Supports motor frame sizes 57, 60, or 86 for flexible motor selection
Design Features
- Metal Dust Cover (C-type): Shields internal components from contaminants, extending actuator lifespan
- Lightweight Aluminum Base Plate: Slotted design enables flexible, secure mounting using T-nuts at any position
- Customisable Motor Mounting Blocks: Tailored to your motor type and frame size
- Plug & Play Installation: Simplifies integration by eliminating the need for separate guide rails, couplings, and ball screw alignment
Applications
- Industrial Automation
- Pick & Place Systems
- CNC Engraving Machines
- Liquid Dispensing Units
- Precision Material Handling
Ordering Code:
MAX 140 C H A – (Stroke in mm)
C = Metal cover for dust protection
H = 4 Linear blocks on 2 rails
A = Ball screw pitch 5 mm
B = Ball screw pitch 10 mm
C = Ball screw pitch 16 mm
