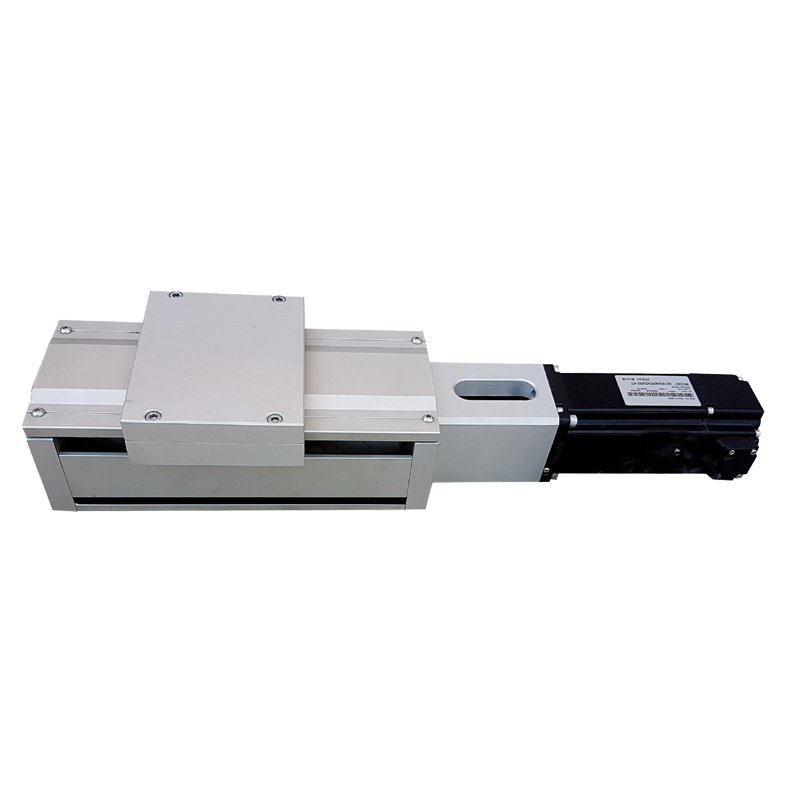

MAX 100 CLA 350 mm Stroke
[Maxima Ball Screw Actuator]

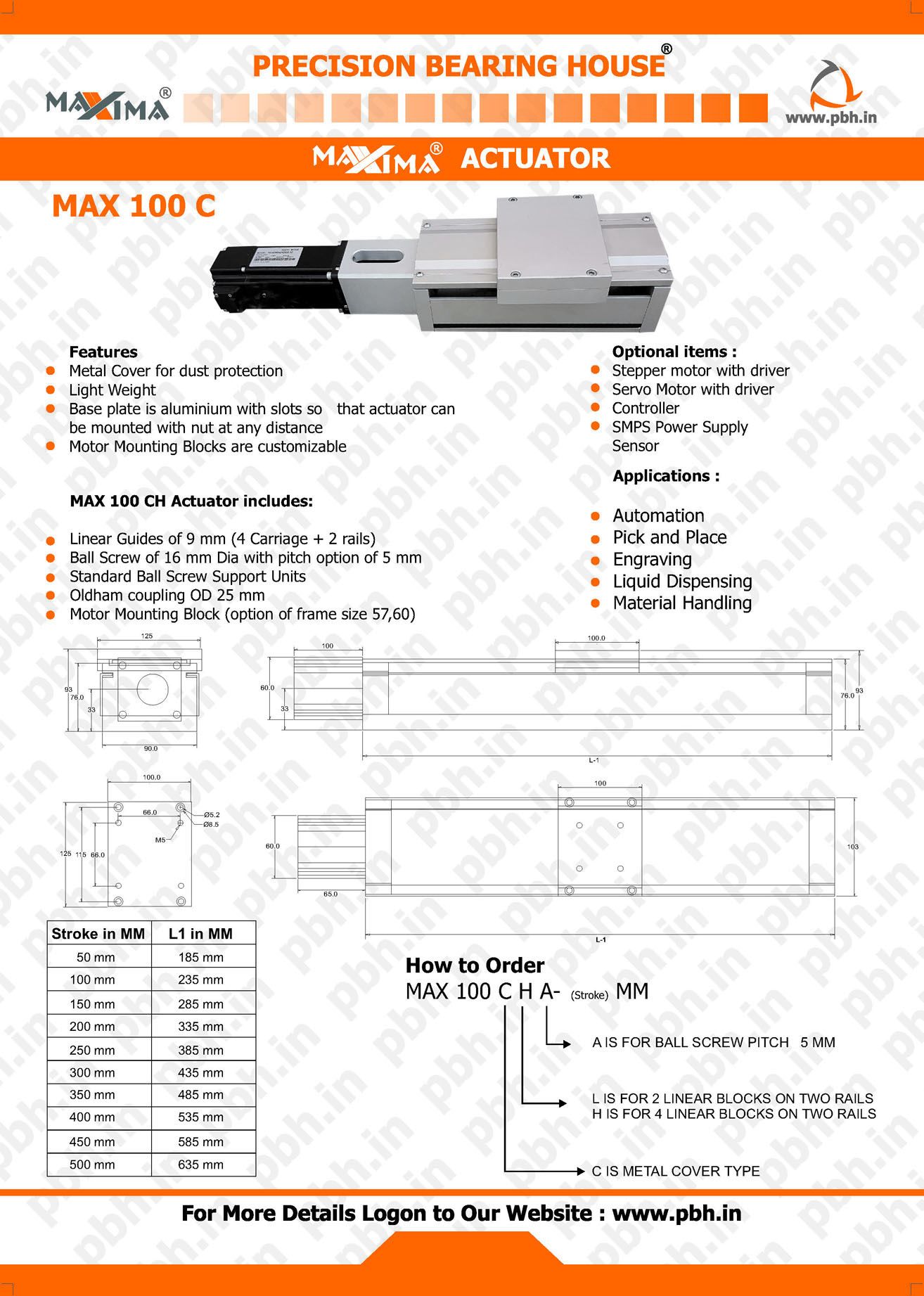

The MAX 100 CHA is a compact, high-precision ball screw linear actuator designed for demanding industrial automation applications that require smooth, accurate, and repeatable linear motion. Engineered with robust components and thoughtful design, the MAX 100 CHA offers a plug-and-play solution for integration into automation systems.
Key Specifications:
- Linear Guides: 9 mm wide, includes 2 carriages on 2 precision rails for high rigidity and load stability
- Ball Screw: 16 mm diameter with 5 mm pitch for smooth and precise motion control
- Coupling: Oldham coupling with 25 mm outer diameter
- Motor Mounting Block: Compatible with frame size 57 or 60 stepper/servo motors
