MAX 100 CHA 250 mm Stroke

Choose ball screw pitch:

A · 5 mm pitchBall screw 1605 B · 10 mm pitchBall screw 1610 C · 16 mm pitchBall screw 1616

Enclosed ball screw actuator with a metal dust cover. 250 mm stroke, overall length L1 385 mm.

  • Guides: 9 mm linear guides on 2 rails, 2 blocks on each rail (4 blocks)
  • Ball screw: 1605, Ø16 mm, 5 mm pitch, with standard support units
  • Coupling: Oldham, OD 25 mm
  • Motor block: for frame size 57 or 60 (motor not included)
₹ 32,214.00 ₹ 32,214.00 (Tax included)

MAX 100 CHA ball screw actuator, 250 mm stroke, L1 385 mm. Metal cover, 2 rails with 2 blocks each, 1605 screw. Motor not included.
250 mmStroke
385 mmOverall length L1 (Stroke + 135)
93 mmOverall height
125 × 100 mmCarriage plate
16 × 5 mmBall screw 1605, dia × pitch
4 blocks2 on each of the 2 rails (9 mm guides)
Dimension Drawing: End, Side & Top ViewAll dimensions in mm
Maxima MAX 100 CHA ball screw actuator with metal cover, dimension drawing
Overall dimensions (mm)
L1Overall length (without motor block)Stroke + 135
HHeight to top of carriage93
H₀Body height76
WBody width90
CBall screw centre from base33
Carriage and motor block (mm)
ACarriage plate width125
BCarriage plate length100
MMotor mounting block face100 × 125
MotorBolt pitch (66 × 66)4 × M5
FrameMotor frame size57 or 60
Construction
CoverMetal cover for dust protectionYes
Guides9 mm linear guides4 linear blocks (2 on each rail)
Ball screw1605, diameter × pitch16 × 5
SupportsStandard ball screw support unitsIncluded
CouplingOldham couplingOD 25 mm
Optional items
MotorStepper motorOptional
Motor is not included in the price. Click the drawing to open it full size.

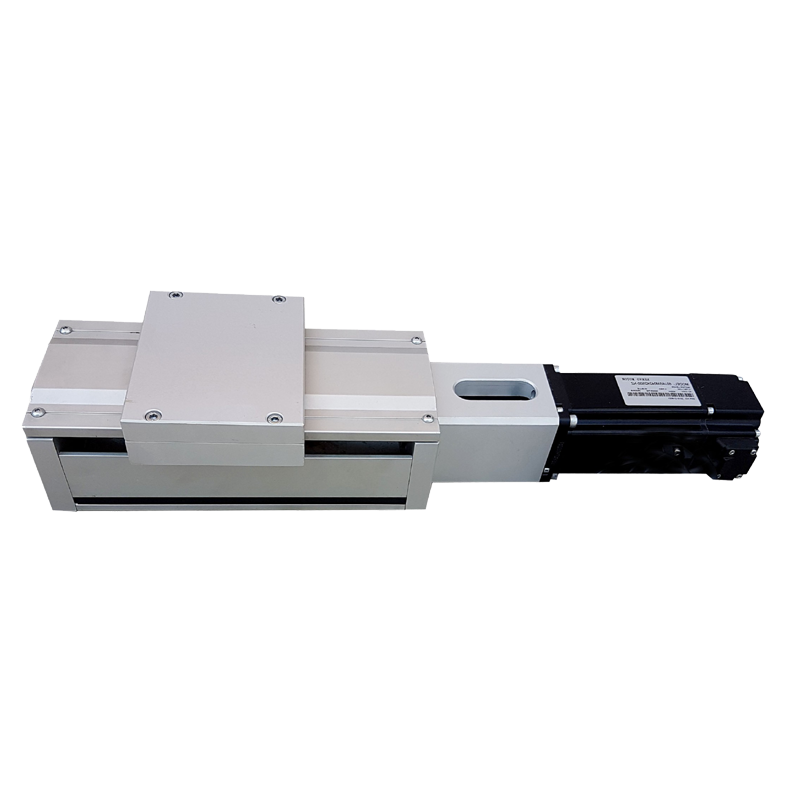

Maxima MAX 100 CHA: Ball Screw Actuator with Metal Cover

An enclosed linear actuator for automation. The metal cover keeps dust off the ball screw and linear guides, and the slotted aluminium base lets you bolt it down anywhere along its length. This model runs on 4 linear blocks (2 on each rail) (9 mm guides) with a 1605 ball screw: 16 mm diameter, 5 mm pitch.

Features

Metal coverProtects the ball screw and guides from dust.
Light weightAluminium construction throughout.
Slotted base plateMount with nuts at any position along the length.
Custom motor blockMotor mounting block for frame size 57 or 60; can be customised.

Applications

  • Automation
  • Pick and place
  • Engraving
  • Liquid dispensing
  • Material handling

How to order

MAX 100Series
CMetal cover
H2 blocks/rail
A5 mm pitch
250Stroke, mm
  • C: metal cover type
  • L: 2 blocks, 1 on each rail · H: 4 blocks, 2 on each rail
  • Ball screw: A = 1605 (5 mm pitch) · B = 1610 (10 mm pitch) · C = 1616 (16 mm pitch)
Need 2 blocks? See MAX 100 CLA 250 mm

Stroke and overall length

Stroke (mm)50100150200250300350400450500
L1 (mm)185235285335385435485535585635

L1 = stroke + 135 mm. Linked strokes open their own product page. Other strokes are made to order: email ss@pbh.in or call +91 99736 03355.
