LMF 30UU

  • Shaft Ø30 mm, outer Ø45 mm, length 64 mm
  • Round flange Ø74, 4 fixing holes on Ø60 mm
  • Basic load: 1,570 N dynamic, 2,740 N static
  • Fits Maxima shaft MCS 30
₹ 696.20 ₹ 696.20 (Tax included)

Maxima LMF 30UU linear bearing with round flange: 30 mm bore, 45 mm OD, 64 mm long. Dynamic load 1,570 N, static 2,740 N. Buy online at PBH.

Specification Sheet / Product Data

30 mmShaft diameter
45 mmOuter diameter
64 mmLength
74 mmFlange diameter (Df)
1,570 NBasic dynamic load
2,740 NBasic static load

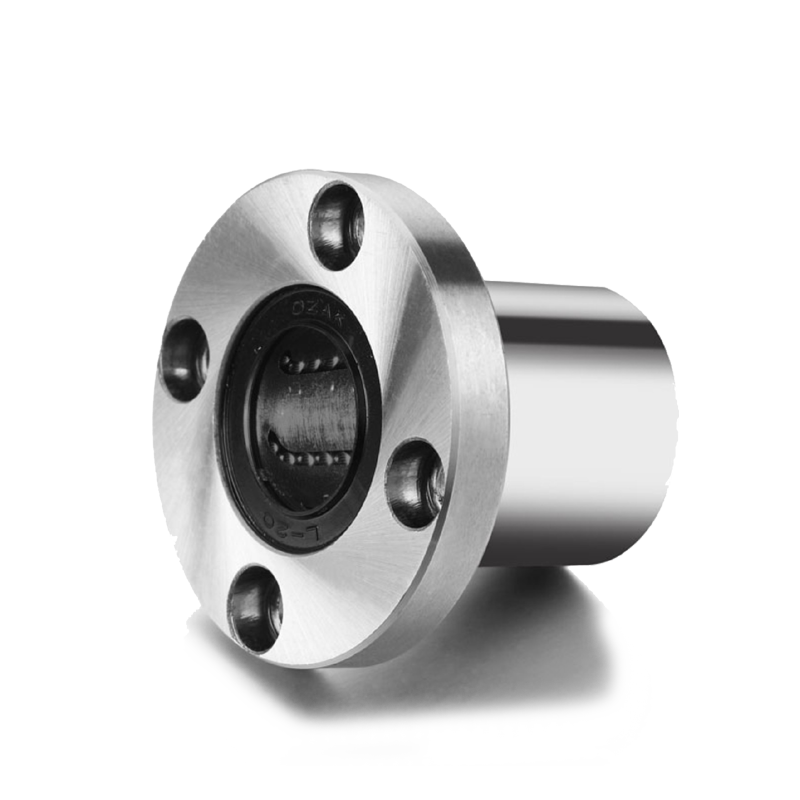

Maxima Linear Bearing LMF 30UURound flange, resin retainer, double wiper seals
dr = 30D = 45Df = 74L = 64t = 10dr = 30Dp = 60Df = 74Side viewFront view (LMF 30UU)

Side view and front view. Labels as in the PBH catalogue: dr shaft (bore) diameter, D outer diameter, L length, Df flange diameter, t flange thickness, Dp fixing-hole pitch circle diameter, X fixing hole, Y counterbore diameter, Z counterbore depth. Dimensions in mm.

Dimensions
Part numberLMF 30UU
Shaft diameter (dr)30 mm
Outer diameter (D)45 mm
Length (L)64 mm
Flange diameter (Df)74 mm
Flange thickness (t)10 mm
Pitch circle diameter (Dp)60 mm
Fixing hole (X), 4 holes6.6 mm
Counterbore diameter (Y)11 mm
Counterbore depth (Z)6.1 mm
Load & construction
Basic dynamic load1,570 N
Basic static load2,740 N
TypeRound flange, closed, double sealed (LMF…UU)
Outer cylinderHeat-treated steel
Ball retainerResin
SealsWiper seals on both sides
Fits shaftØ30 mm, e.g. MCS 30

Dimensions and basic load ratings are taken from the PBH catalogue.

Matching shaft

Use LMF 30UU with the Maxima hardened and ground shaft MCS 30. Any length from 100 mm to 2000 mm.
