LM 20UU OP

  • Shaft Ø20 mm, outer Ø32 mm, length 42 mm
  • Open slot, opening angle 60°, double wiper seals
  • Basic load: 882 N dynamic, 1,370 N static
  • Fits Maxima shaft MCS 20
₹ 236.00 ₹ 236.00 (Tax included)

Maxima LM 20UU OP open type linear ball bearing: 20 mm bore, 32 mm OD, 42 mm long. Dynamic load 882 N, static 1,370 N. Buy online at PBH.

Specification Sheet / Product Data

20 mmShaft diameter
32 mmOuter diameter
42 mmLength
11 mmOpening width (h1)
882 NBasic dynamic load
1,370 NBasic static load

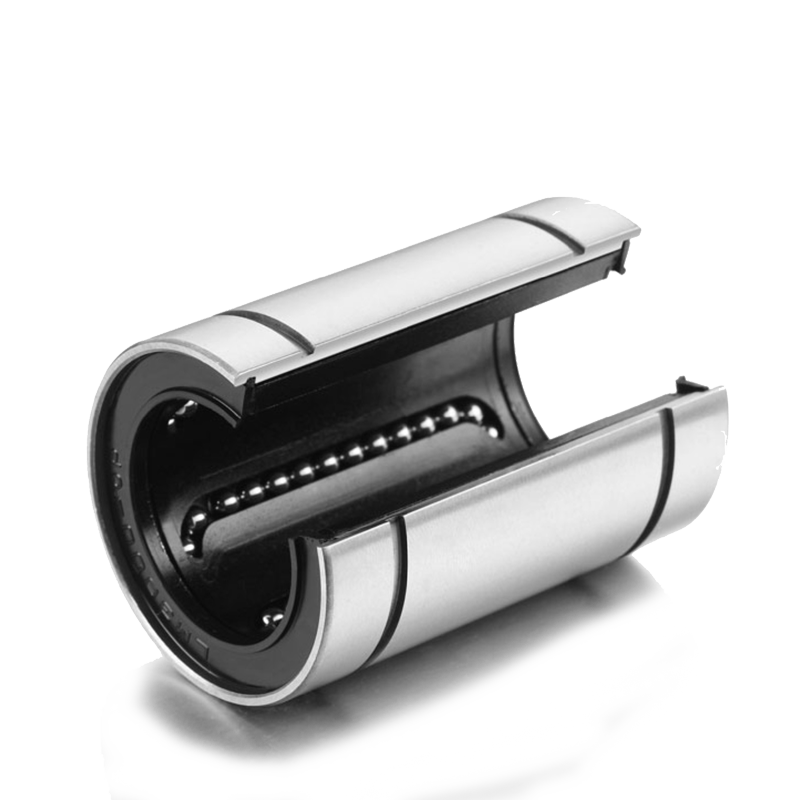

Maxima Linear Bearing LM 20UU OPOpen type, steel outer cylinder, resin retainer, double wiper seals
L = 42B = 30.5W = 1.6W = 1.6D = 32D1 = 30.5dr = 20dr = 2060°h1 = 11D = 32LM 20UU OPEnd view

Side view (half section) and end view. Labels as in the PBH catalogue: L overall length, B ring-groove spacing, W ring-groove width, D outer diameter, D1 ring-groove diameter, dr shaft (bore) diameter, h1 opening width, with the opening angle. Dimensions in mm.

Dimensions
Part numberLM 20UU OP
Shaft diameter (d)20 mm
Outer diameter (D)32 mm
Length (L)42 mm
Ring-groove spacing (B)30.5 mm
Groove width (W)1.6 mm
Groove diameter (D1)30.5 mm
Opening width (h1)11 mm
Opening angle60°
Load & construction
Basic dynamic load882 N
Basic static load1,370 N
TypeOpen type, double sealed (UU-OP)
Outer cylinderHeat-treated steel
Ball retainerResin
SealsWiper seals on both sides
Fits shaftØ20 mm, e.g. MCS 20

Dimensions and basic load ratings are taken from the PBH catalogue.

Matching shaft

Use LM 20UU OP with the Maxima hardened and ground shaft MCS 20. Any length from 100 mm to 2000 mm.

MCS 20 shaft

MCS 20
Maxima Hardened & Ground Linear Shaft, Ø20 mm, h7

Other 20 mm bearing types

Other versions: standard, long, open, flanged and housed types for a 20 mm shaft.

LM 20UU linear bearing

LM 20UU
Maxima Linear Bearing

incl. GST
View details
LM 20LUU linear bearing

LM 20LUU
Maxima Linear Bearing, Long Type

incl. GST
View details
LMF 20UU linear bearing

LMF 20UU
Maxima Linear Bearing with Round Flange

incl. GST
View details
LMK 20UU linear bearing

LMK 20UU
Maxima Linear Bearing with Square Flange

incl. GST
View details
LMH 20UU linear bearing

LMH 20UU
Maxima Linear Bearing with Oval Flange

incl. GST
View details

Features & construction

  • High precision and rigidity: solid steel outer cylinder with an industrial-strength resin ball retainer.
  • Open slot: the opening along the bearing lets it run on a shaft held by a continuous support, so long shafts do not sag.
  • Easy to replace: standard LM dimensions and strict precision control, so it interchanges with other brands of the same size.
  • Sealed on both sides: wiper seals keep dust out and hold the oil in.

The bearing has an outer cylinder, a ball retainer, balls and two end rings. The outer cylinder is heat treated for hardness and long travel life, and the end rings hold the retainer in place.
