Precision Linear Guide Rails for Automation, Robotics & Industrial Machinery
The PBR15 linear guide rail is designed for demanding applications across industries where precision and reliability are critical:
- Automation equipment
- Industrial robots
- Precision instruments
- 3D printers
- Packaging machinery
- Semiconductor & electronics equipment
- Medical devices
- Textile machinery
- Automotive production lines
- Printing equipment
- Inspection & measuring machines

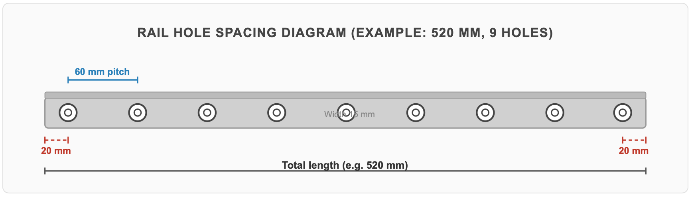

Linear Rail Cut Length Rail Drawing
Length (mm) | No. of Holes | End Offset | Hole Pitch |
220 | 4 | 20 | 60 |
280 | 5 | 20 | 60 |
340 | 6 | 20 | 60 |
400 | 7 | 20 | 60 |
460 | 8 | 20 | 60 |
520 | 9 | 20 | 60 |
580 | 10 | 20 | 60 |
640 | 11 | 20 | 60 |
700 | 12 | 20 | 60 |
760 | 13 | 20 | 60 |
820 | 14 | 20 | 60 |
880 | 15 | 20 | 60 |
940 | 16 | 20 | 60 |
1000 | 17 | 20 | 60 |
1060 | 18 | 20 | 60 |
1120 | 19 | 20 | 60 |
1180 | 20 | 20 | 60 |
1240 | 21 | 20 | 60 |
1300 | 22 | 20 | 60 |
1360 | 23 | 20 | 60 |
1420 | 24 | 20 | 60 |
1480 | 25 | 20 | 60 |
1540 | 26 | 20 | 60 |
1600 | 27 | 20 | 60 |
1660 | 28 | 20 | 60 |
1720 | 29 | 20 | 60 |
1780 | 30 | 20 | 60 |
1840 | 31 | 20 | 60 |
1900 | 32 | 20 | 60 |
1960 | 33 | 20 | 60 |
2020 | 34 | 20 | 60 |
2080 | 35 | 20 | 60 |
2140 | 36 | 20 | 60 |
2200 | 37 | 20 | 60 |
2260 | 38 | 20 | 60 |
2320 | 39 | 20 | 60 |
2380 | 40 | 20 | 60 |
2440 | 41 | 20 | 60 |
2500 | 42 | 20 | 60 |
2560 | 43 | 20 | 60 |
2620 | 44 | 20 | 60 |
2680 | 45 | 20 | 60 |
2740 | 46 | 20 | 60 |
2800 | 47 | 20 | 60 |
2860 | 48 | 20 | 60 |
2920 | 49 | 20 | 60 |
2980 | 50 | 20 | 60 |
3040 | 51 | 20 | 60 |
3100 | 52 | 20 | 60 |
3160 | 53 | 20 | 60 |
3220 | 54 | 20 | 60 |
3280 | 55 | 20 | 60 |
3340 | 56 | 20 | 60 |
3400 | 57 | 20 | 60 |
3460 | 58 | 20 | 60 |
3520 | 59 | 20 | 60 |
3580 | 60 | 20 | 60 |
3640 | 61 | 20 | 60 |
3700 | 62 | 20 | 60 |
3760 | 63 | 20 | 60 |
3820 | 64 | 20 | 60 |
3880 | 65 | 20 | 60 |
3940 | 66 | 20 | 60 |
