FSUD 1605 with 500mm Screw

https://www.pbh.in/web/image/product.template/61326/image_1920?unique=3e8eef3

[Gten Taiwan Nut - Rolled Balls Screw C7]

₹ 2,850.00 2850.0 INR ₹ 2,850.00 Per Nos.

(Inc GST)
₹ 2,850.00 (+ GST 18% extra)

₹ 2,850.00

Not Available For Sale

This combination does not exist.

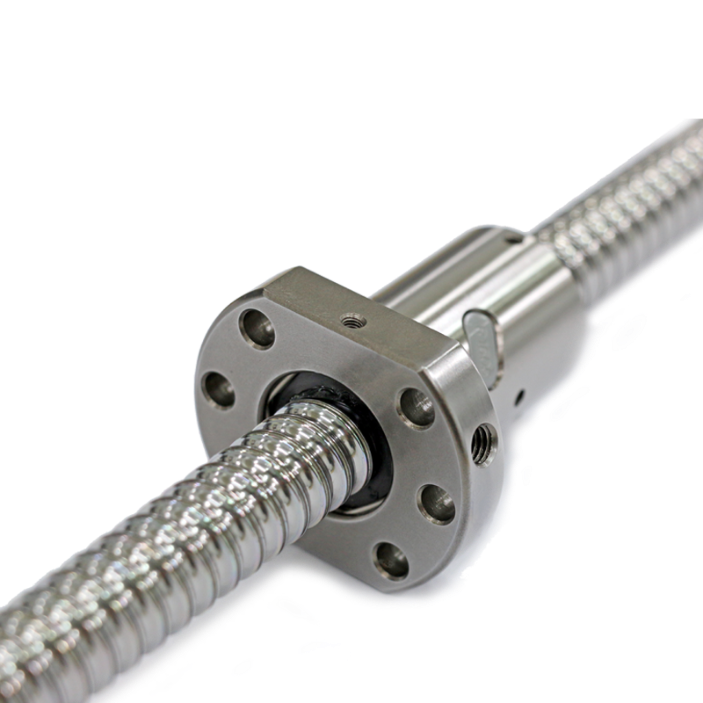

FSU 1605 Rolled Ball Screw.
Price Includes : 1Nut and 1Screw of 500 mm Length
Smooth Motion, Long Operational Life
Diameter of Screw : 16 mm , Pitch : 5 mm
Rolled Ball Screw C7 Grade Positional Accuracy (.050/300 mm Travel)
Number of Circuits : 4
Dynamic Load Rating : 780 Kgf
Static Load Rating : 1790 Kgf
Clearance in Axial Direction : .08 mm

We offer customised length & end Machining of Srcew. Please email us with the required length and drawing, we will provide you with the quote.

FSUD 1605 Specification Sheet
