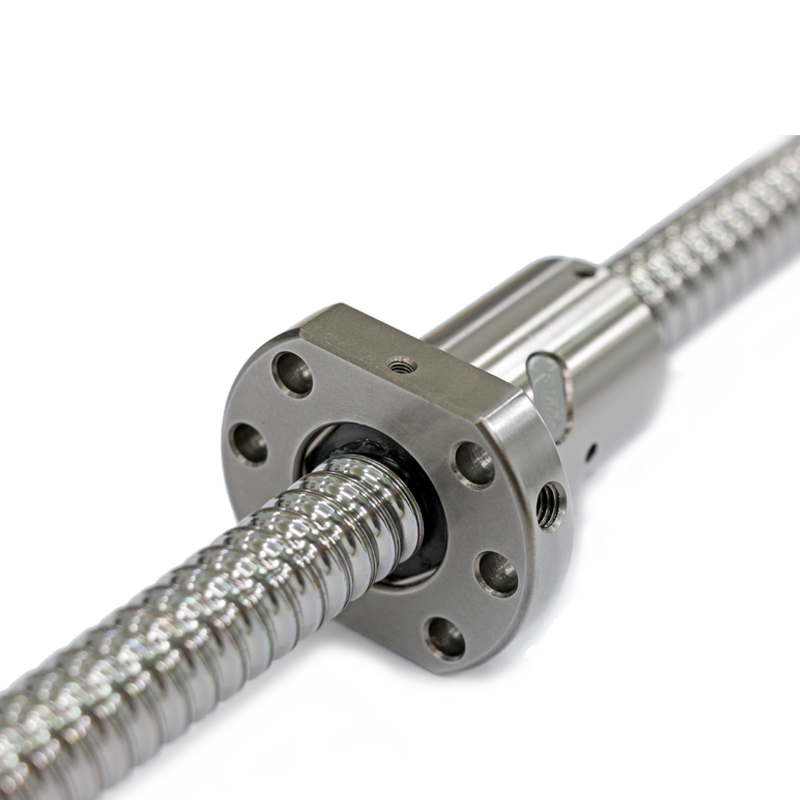

FSUD 1605 with 1000mm Screw

    ₹ 3,550.00 ₹ 3,550.00 3550.0 INR

    ₹ 3,550.00

    This combination does not exist.

    Add to Cart Buy Now

    Price Includes : 1Nut and 1Screw of 1000 mm Length
    Smooth Motion, Long Operational Life
    Diameter of Screw : 16 mm , Pitch : 5 mm
    Rolled Ball Screw C7 Grade Positional Accuracy (.050/300 mm Travel)
    Number of Circuits : 4
    Dynamic Load Rating : 780 Kgf
    Static Load Rating : 1790 Kgf
    Clearance in Axial Direction : .08 mm

    [Gten Taiwan Nut - Rolled Balls Screw C7]


    Your Dynamic Snippet will be displayed here... This message is displayed because you did not provided both a filter and a template to use.

    We offer customised length & end Machining of Srcew. Please email us with the required length and drawing, we will provide you with the quote.

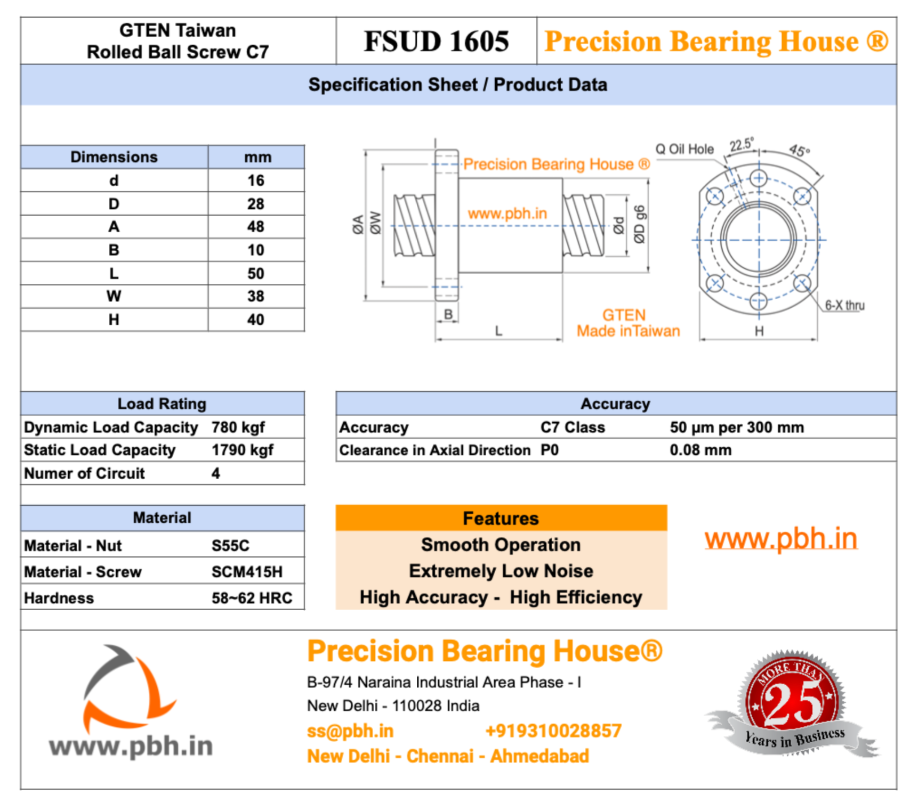

    FSUD 1605 Specification Sheet
