FSED 1616 with 1000mm Screw

https://pbhmaxima.odoo.com/web/image/product.template/61971/image_1920?unique=1f6a828

[Gten Taiwan Rolled Balls Screw C7]

₹ 5,300.00 5300.0 INR ₹ 5,300.00 Per Nos.

(Inc GST)
₹ 5,300.00 (+ GST 18% extra)

₹ 5,300.00

Not Available For Sale

This combination does not exist.

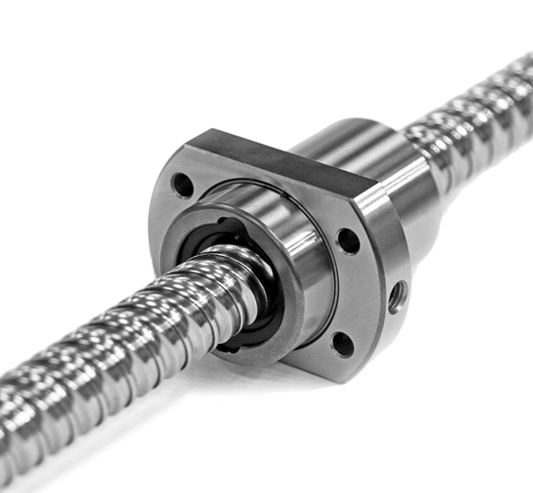

FSE 1616 Rolled Ball Screw.
Price Includes : 1Nut and 1Screw of 1000 mm Length
Smooth Motion, Long Operational Life
Diameter of Screw : 16 mm , Lead : 16 mm
Rolled Ball Screw C7 Grade Positional Accuracy (.050/300 mm Travel)
Number of Circuits : 4
Dynamic Load Rating : 719 Kgf
Static Load Rating : 1429 Kgf
Clearance in Axial Direction : .08 mm
2-Start (Start is the number of independent helices that run around the screw shaft)


FSED 1616 Specification Sheet
