BGXH 15 FL BLOCK

https://pbhmaxima.odoo.com/web/image/product.template/9688/image_1920?unique=d3d7d35

[STAF- Taiwan Block for Linear Guide]

₹ 2,680.00 2680.0 INR ₹ 2,680.00 Per Nos.

(Inc GST)
₹ 2,680.00 (+ GST 18% extra)

₹ 2,680.00

Not Available For Sale

This combination does not exist.

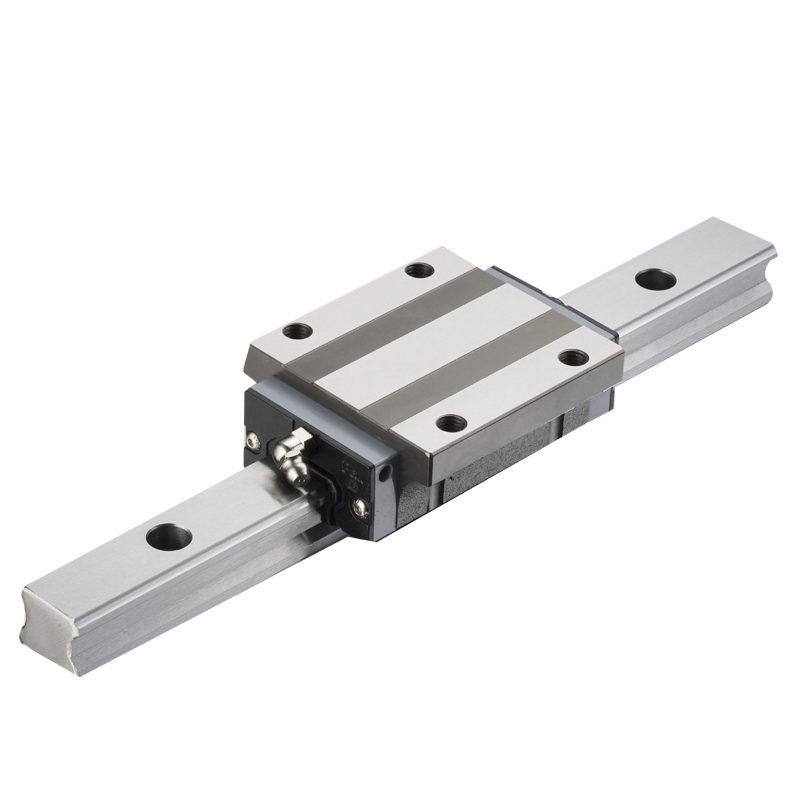

BGXH 15 FL
Flanged & Long Type Block suitable to be used with BGR 15 Rail
* Linear Guides are also known as LM Guide / Linear Guideways
* High accuracy
* Low Noise
* Smooth Movement
* High Load Rating
* BGX 4-Groove Even Load Design
* Made in Taiwan

This is the price for one block, for Rail please select Part Number BGR 15 Rail

Description

BGX 4-Groove Even Load Design

The 4 rows of steel balls forms 45 degree contact with the grooves at 4 positions will balance the loads form all direction. This design that permits even load capacity in all directions no matter how the rails are mounted is widely adopted in all types of machines. Compared with the 2-groove Gothic design, the 4-groove construction is of better rigidity, accuracy and life. In particular, the auto-adjust capability allows quick accurate linear motions by eliminating the deviation of the mounting planes and the assembly errors.

BGX Seal Design
Incursion of foreign objects is normally the major reason of life shortening for rails because the accuracy of linear guides relies very much on circulation of the steel ball between the slide and the rail. Even the incursion of smallest objects can cause skipping and bumping of the slide and lead to permanent damage. Therefore, seal design is the key to linear slide quality. The seal design in BGX linear guides is divided into top and bottom seal systems aiming at the incursion passage of the foreign objects.

BGX Oil Retaining in Circulation System
BGX circulation system reserves a lot of space for retaining oil and is able to keeps a lot more oil. When linear slide moves, the oil inside spreads all over the prolongs the life
