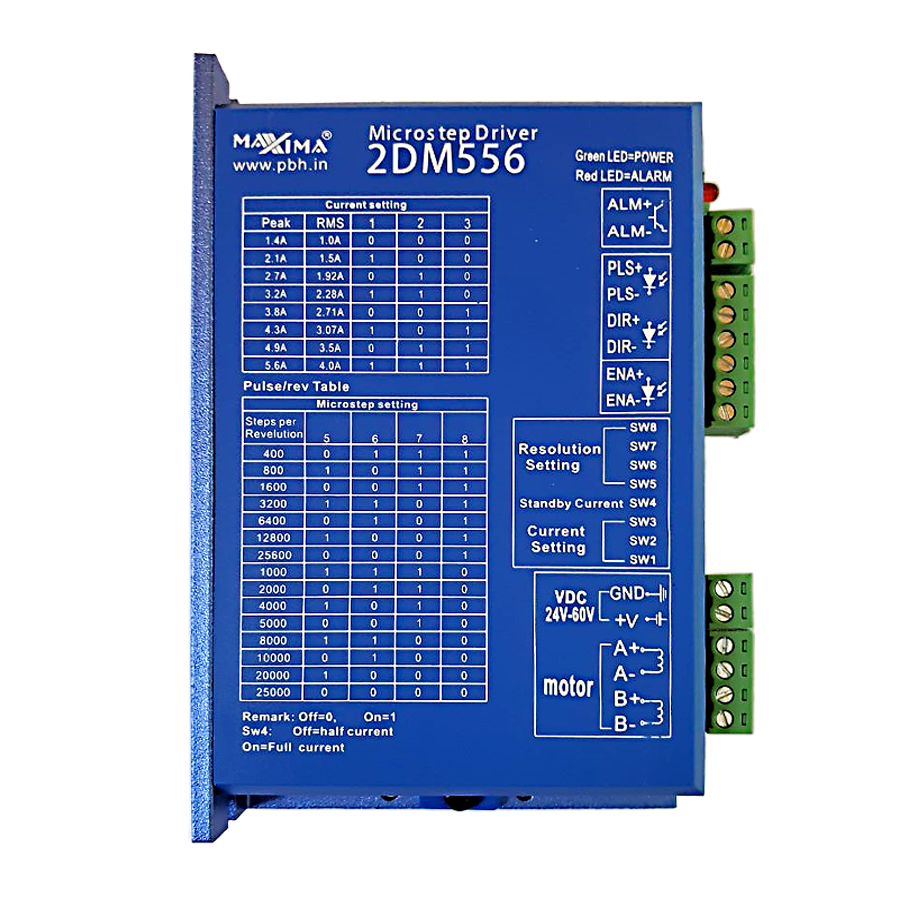

2DM 556


[Maxima 2-Phase Stepper Drive]

₹ 4,248.00 4248.0 INR ₹ 4,248.00 Per Nos.

(Inc GST)
₹ 3,600.00 (+ GST 18% extra)

₹ 3,600.00

    This combination does not exist.

    * Maxima 2 Phase Digital Stepper Drive for Stepper Motor
    * Selectable Micro-Step Resolution Setting.
    * Output Current (Peak) 5.6 Amp
    * Supply voltage 24 ~ 60V
    * Alarm output function I/O ports.
    * Pulse frequency response Max. 200kHz

    Download Manual

    Odoo • Image and Text

    -------Most Advance Stepper Motor Drive-------

     Advantages :

    • Extremely Low Noise
    • Anti-Resonance One of the setback in Stepper Motor system is the Resonance. Dm Series automatically overcome the resonance with its Control Torque Algorithm. This results in better Mid-Frequency stability and higher Torque Output at Higher Speeds.
    • Micro-Step Interpolation MicroStep are automatically inserted within a Full stop to provide a more fine step resulting in a smoother motion.
    • Low Speed Torque Smoothing Better Current Loop Control at low speed reduces Harmonic components and improving the low speed performance substantially.
    • Input Signal Smoothing Dynamic Acceleration and Deceleration filtering provides a smooth S-Curve Start/Stop Motion reducing mechanical wear and tear


    Electric data:

    • DC input voltage range of 24~60V (36V typical)
    • The output current of 1.4~5.6A
    • The input pulse frequency 250KHZ
    • Logic input 10MA
    • Pulse low electrical level time 2.5 US


    Working environment:

    • Operating temperature:  0 ~ + 50 °C
    • The storage temperature:    -20 °C ~ + 80 °C
    • Humidity: 40 ~ 90 % RH
    • Cooling method: Natural cooling or forced air cooling
    • The weight is about 280 gram
