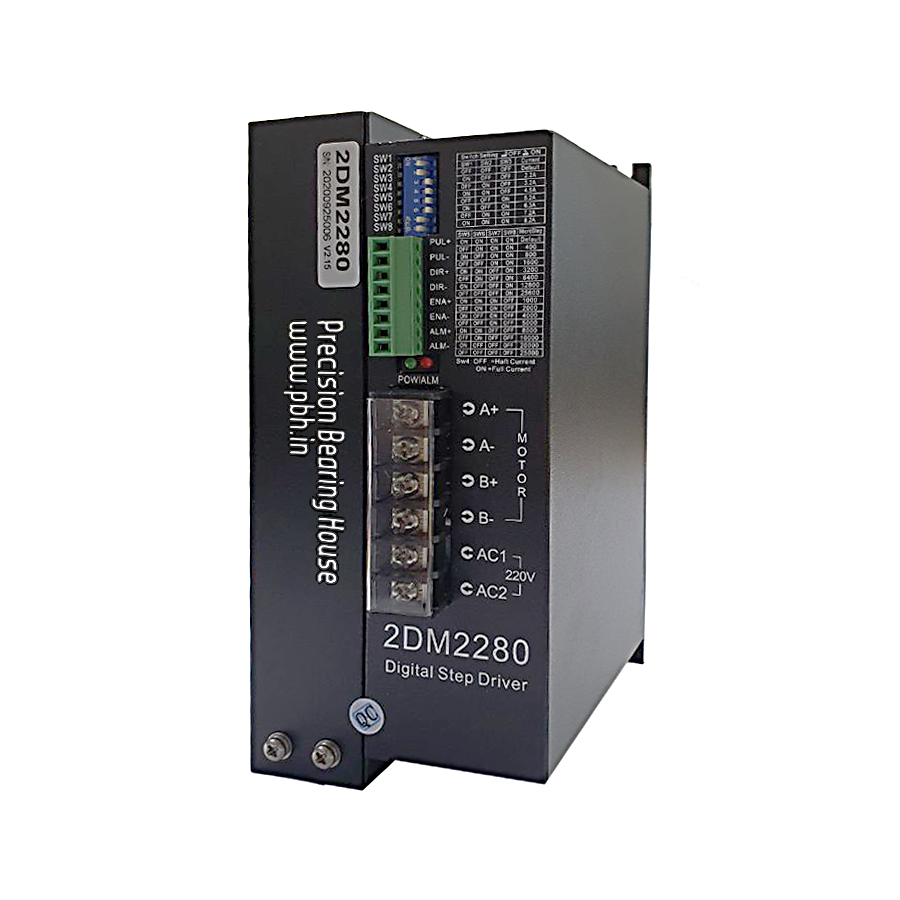

2DM 2280

https://www.pbh.in/web/image/product.template/9672/image_1920?unique=da814d3

[Maxima 2-Phase Stepper Drive]

₹ 9,204.00 9204.0 INR ₹ 9,204.00 Per Nos.

(Inc GST)
₹ 7,800.00 (+ GST 18% extra)

₹ 7,800.00

    This combination does not exist.

    ADD TO CART BUY NOW
    * Maxima 2 Phase Digital Stepper Drive for Stepper Motor
    * Selectable Micro-Step Resolution Setting.
    * Output Current (Peak) 8.2 Amp
    * Supply voltage 240VAC
    * Alarm output function I/O ports.
    * Pulse frequency response Max. 200kHz

    Download Manual


    Odoo • Image and Text

    Key Features:

    • *The new 32-bit DSP technology
    • * Optically isolated differential inputs
    • Extra-low noise and anti-resonance
    • * The range is 2-128 micorsteps
    • * Built 500 high octave microstep ( selected microstep value)
    • * Current can set between rated value alternatively
    • * Stationary current is automatically halved
    • Pulse frequency response up to 200KHz
    • * Overvoltage, undervoltage, short circuit protection
    • * Alarm output function I / O ports
    • Offline protection input ENA





    Technical parameter



    Specifications:

    Parameters

    Min

    Typical

    Max

    Unit

    Output Current (Peak)

    2.2

    -

    8.2

    Amps

    Supply voltage

    80

    220

    240

    VAC

    Logic Input Current

    -

    1

    16

    mA

    Pulse input frequency

    -

    -

    200

    KHz

    Low Level Time

    2.5

    -

    -

    µsec


    Environment



    Cooling

    Natural Cooling or Forced Convection

    Environment

    Space

    Avoid dust, oil frost and

    corrosive gases

    Ambient Temperature

    65°C

    Humidity

    <80%RH

    Vibration

    5.9m/s² Max

    Storage Temp.

    -10°C 80°C

    Weight

    Approx. 1.2 Kg


     2DM 2280
