MCS 10 - Length 2000mm

    ₹ 940.00 ₹ 940.00 940.0 INR

    ₹ 940.00

    This combination does not exist.

    Add to Cart Buy Now
    Maxima Shaft Dia : 10 mm
    * Case Hardened & Ground Chrome Plated
    * g6 Tolerance : -5 μm to -14 μm
    * Material : 45 High Quality Carbon Steel S45C
    * Hardness : HRC 55-60
    * Suitable for Linear Bearings, Pneumatic, Hydraulic applications

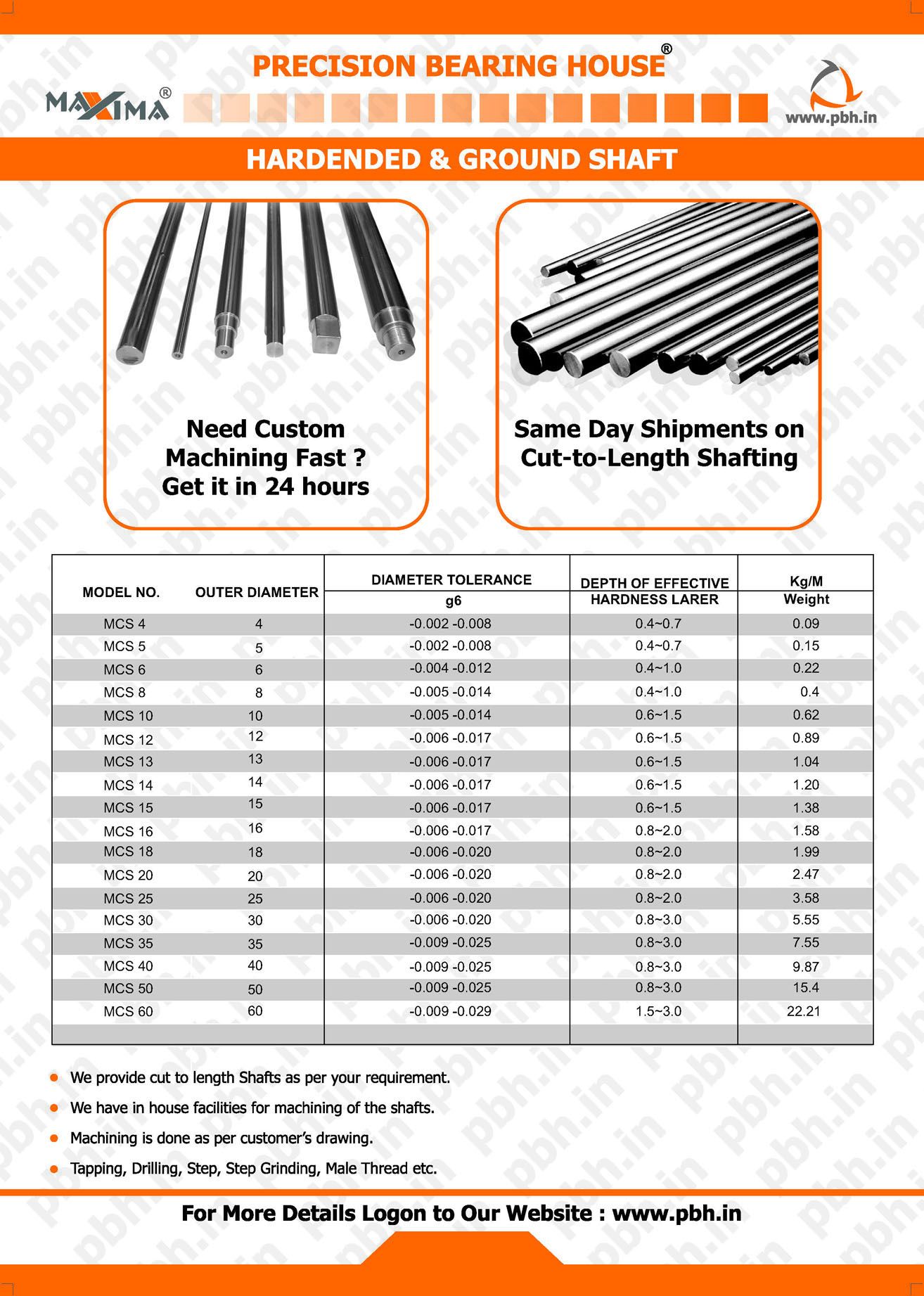

    [Maxima Hardened & Ground Shaft]

    Description


    * Maxima Shaft Dia : 10 mm

    * Case Hardened & Ground

    * g6 Tolerance

    * Suitable for Linear Bearings, Pneumatic, Hydraulic applications

    • Applications : Machine Centers ,Machine Tools, Precision machining machines,Heavy cutting machines, Punching machines,Marble cutting machines,Automatic equipments,Grinding machines,High speed transfer equipments, Injection Moulding machines, Measuring equipments

    • Suitable Shaft Supports : SK 10 or SHF 10

    • Suitable Linear Bearings : LM 10 UU, LM 10 LUU, LMF 10 UU, LMF 10 LUU, LMK 10 UU, LMK 10 LUU, LMH 10 UU, LMH 10 LUU, SC 10 UU, SC 10 LUU
